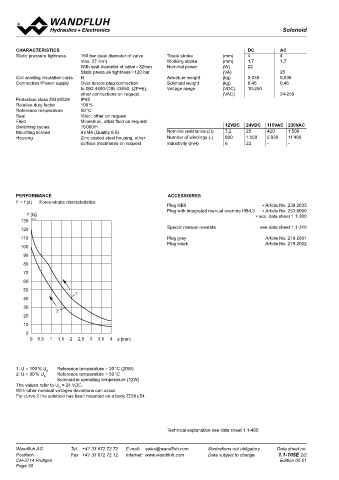

P. 30
Solenoids Solenoids
Solenoid
CHARACtERIStICS DC AC Solenoid SIS35V
Static pressure tightness 160 bar (seal diameter of valve Totale stroke (mm) 4 4 to VDE 0580
max. 27 mm) Working stroke (mm) 1,7 1,7 Plug plate to ISO 4400 / DIN 43650
With seal diameter of valve = 32mm Nominal power (W) 22
Static pressure tightness = 120 bar (VA) 25 Protection class IP65
Coil winding insulation class H Armature weight (kg) 0,038 0,038
Connection / Power supply Over device plug connection Solenoid weight (kg) 0,45 0,45
to ISO 4400 / DIN 43650, (2P+E), Voltage range (VDC) 10-250
other connections on request (VAC) 24-250
Protection class EN 60529 IP65 DESCRIPTION FUNCTION APPLICATION
Relative duty factor 100 % The SIS35V is a switching solenoid. Its design When the solenoid is energised with the speci- Essential for hydraulic directional and poppet
Reference temperature 50 °C corresponds to VDE standard 0580. The steel fied nominal voltage, the armature moves from valves. Because of the risk of overheating, the
Seal Viton, other on request housing is zinc coated as a standard. Static the starting position of its stroke (s = 4 mm) to solenoid must never be used separately. The
Fluid Mineral oil, other fluid on request pressure tightness is 350 bars. All o-rings are the end position (s = 0 mm). The switching time lenght of the fixing screws depends on the base
Switching cycles 15 000/h 12VDC 24VDC 115VAC 230VAC Viton. The solenoids are fixed to the valve is essentially dependent on the application. The material of the body. An o-ring is used for the
Mounting screws 4 x M4 (Quality 8.8) Nominal resistance (Ω) 7,2 25 420 1’500 with four screws. Depending on the intended power stroke characteristics are designed to valve seal. Information on screws and o-rings
Housing Zinc coated steel housing, other Number of windings (-) 800 1’550 5’930 11’400 use, the solenoid can be supplied with a plug suit the requirements of hydraulic valves. AC will be found in the data sheets relating to the
surface treatments on request Inductivity (mH) 6 22 - - screw, or with integrated manual override. The versions include an electronic rectifier integrated valves concerned. Before changing the plug
connector plate corresponds to ISO 4400 and into the connector plate. In this way maximum screw or the screw with integrated manual
DIN 43650. performance is assured. override, care must be taken to ensure that the
solenoid is not under pressure. Risk of injury!
The maximum operating pressure is determin-
ded by the valve actually used.
TYPE CODE
SI S 35 V - - #
PERfORmANCE ACCESSOIRES Solenoid
F = f (s) Force-stroke characteristics Industrial execution
Plug HB0 ∗ Article No. 239.2033
Plug with integrated manual override HB4,5 ∗ Article No. 253.8000 Super
F [N] ∗ acc. data sheet 1.1-300
130 K0116 Square 35 mm housing
120 Special manual override see data sheet 1.1-310 Solenoid completly potted
Nominal voltage U 12 VDC G12
110 Plug grey Article No. 219.2001 N 24 VDC G24
Plug black Article No. 219.2002 115 VAC R115 ∗
100
230 VAC R230 ∗
90 AC= 50 to 60 Hz
∗ Rectifier integrated in the plug plate
80 Other nominal voltages and nominal performances on request
70
60 with mounted screw plug (data sheet 1.1-300) HB0
with mounted manual override (data sheet 1.1-300) HB4,5
50 with mounted special manual override (data sheet 1.1-310) H...
1
40 Design-Index (Subject to change)
30
2
20 DIMENSIONS
10
0 6,25
0 0.5 1 1.5 2 2.5 3 3.5 4 s [mm]
8 x0,75 74
1: U = 100 % U Reference temperature = 20 °C (20W) M 2,9 4
N
2: U = 90 % U Reference temperature = 50 °C 32 45,5 8
N
Solenoid in operating temperature (12W) 4,5
The values refer to U = 24 VDC.
N
With other nominal voltages deviations can occur. (∅1,5)
For curve 2 the solenoid has been mounted on a body 38 x 54.
53 2,2
59,2 28 5,25
70 35 9,9*
Technical explanation see data sheet 1.1-400 * Solenoid energised (s= 0 mm)
