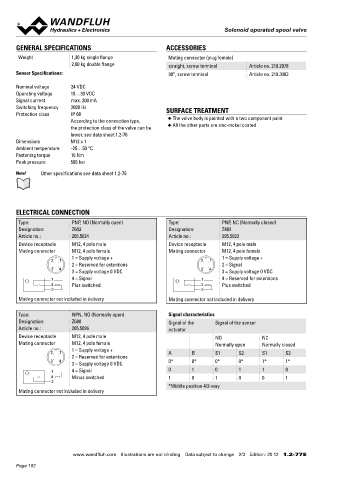

Page 182 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve Solenoid operated spool valve

GENERAL SPECIFICATIONS ACCESSORIES DIMENSIONS / SINGLE MONITORING
Weight 1,30 kg single flange Mating connector (plug female) 4/3-way spool valve (spring centred) 4/2-way spool valve (spring reset) operation A-side
2,60 kg double flange straight, screw terminal Article no. 219.2978 MD= 10.5Nm(8.8)
Sensor Specifications: 90°, screw terminal Article no. 219.3003 A S2 S1 B A 13.5Nm(10.5) S1

Nominal voltage 24 VDC
Operating voltage 10…30 VDC 64 0.5 70 96.75
Signal current max. 200 mA 29.5
Switching frequency 2000 Hz
Protection class IP 68 SURFACE TREATMENT 379.2 6.5
According to the connection type, ◆ The valve body is painted with a two component paint 10.5
the protection class of the valve can be ◆ All the other parts are zinc-nickel coated 35 72 92.6 36.6 14.1
lower, see data sheet 1.2-76 250.3
Dimensions M12 x 1
Ambient temperature -25…50 °C
Fastening torque 15 Nm 4/2-way spool valve (impulse) 4/2-way spool valve (spring reset) operation B-side
Peak pressure 500 bar
S1 S2
A B B
Note! Other specifications see data sheet 1.2-76

343.2 250.3
ELECTRICAL CONNECTION
Type: PNP, NO (Normally open) Type: PNP, NC (Normally closed)
Designation: Z603 Designation: Z482
Article no.: 205.5024 Article no.: 205.5023 DIMENSIONS / DOUBLE MONITORING
Device receptacle M12, 4 pole male Device receptacle M12, 4 pole male 4/2-way spool valve (spring reset) operation A-side
Mating connector M12, 4 pole female Mating connector M12, 4 pole female
1 = Supply voltage + 1 = Supply voltage + A S2 S1
2 1 2 1
2 = Reserved for extentions 2 = Signal
3 4 3 4
3 = Supply voltage 0 VDC 3 = Supply voltage 0 VDC
1 4 = Signal 1 4 = Reserved for extentions
4 Plus switched 2 Plus switched
3 3
286.3
Mating connector not included in delivery Mating connector not included in delivery

Type: NPN, NO (Normally open) Signal characteristics 4/2-way spool valve (impulse) 4/2-way spool valve (spring reset) operation B-side
Designation: Z680 Signal of the Signal of the sensor S2 S1 S2 S1
Article no.: 205.5026 actuator A B B
Device receptacle M12, 4 pole male NO NC
Mating connector M12, 4 pole female Normally open Normally closed
1 = Supply voltage +
2 1 A B S1 S2 S1 S2
2 = Reserved for extentions
3 4 0* 0* 0* 0* 1* 1*
3 = Supply voltage 0 VDC 379.2 286.3
1 4 = Signal 0 1 0 1 1 0
4 Minus switched 1 0 1 0 0 1
3
*Middle position 4/3-way
Mating connector not included in delivery

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 2/3 Edition: 20 12 1.2-77 E www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 20 12 1.2-77 E
