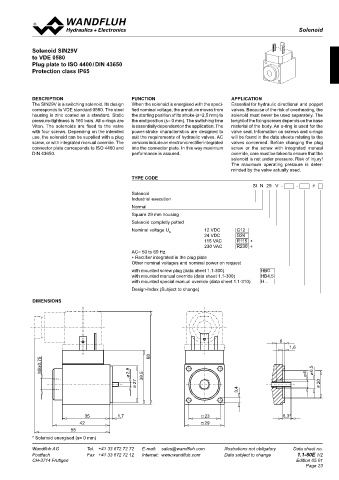

Solenoid
Solenoids

Solenoid SIN29V
to VDE 0580
Plug plate to ISO 4400 / DIN 43650
Protection class IP65

DESCRIPTION fuNCTION APPLICATION
The SIN29V is a switching solenoid. Its design When the solenoid is energised with the speci- Essential for hydraulic directional and poppet
corresponds to VDE standard 0580. The steel fied nominal voltage, the armature moves from valves. Because of the risk of overheating, the
housing is zinc coated as a standard. Static the starting position of its stroke (s=2,5 mm) to solenoid must never be used separately. The
pressure-tightness is 160 bars. All o-rings are the end position (s= 0 mm). The switching time lenght of the fixing screws depends on the base
Viton. The solenoids are fixed to the valve is essentially dependent on the application. The material of the body. An o-ring is used for the
with four screws. Depending on the intended power-stroke characteristics are designed to valve seal. Information on screws and o-rings
use, the solenoid can be supplied with a plug suit the requirements of hydraulic valves. AC will be found in the data sheets relating to the
screw, or with integrated manual override. The versions include an electronic rectifier integrated valves concerned. Before changing the plug
connector plate corresponds to ISO 4400 and into the connector plate. In this way maximum screw or the screw with integrated manual
DIN 43650. performance is assured. override, care must be taken to ensure that the
solenoid is not under pressure. Risk of injury!
The maximum operating pressure is deter-
minded by the valve actually used.
TyPE CODE
SI N 29 V - - #
Solenoid
Industrial execution
Normal
Square 29 mm housing
Solenoid completly potted
Nominal voltage U 12 VDC G12
N
24 VDC G24
115 VAC R115 ∗
230 VAC R230 ∗
AC= 50 to 60 Hz
∗ Rectifier integrated in the plug plate
Other nominal voltages and nominal power on request
with mounted screw plug (data sheet 1.1-300) HB0
with mounted manual override (data sheet 1.1-300) HB4,5
with mounted special manual override (data sheet 1.1-310) H...
Design-Index (Subject to change)
DImENSIONS

6
1,6
8x0,75 68

M 2,9 39,5 4 6,5
27 20
3,4

35 1,7 23 6,3*
42 29
55
* Solenoid energised (s= 0 mm)
