Solenoid
Solenoids Solenoids

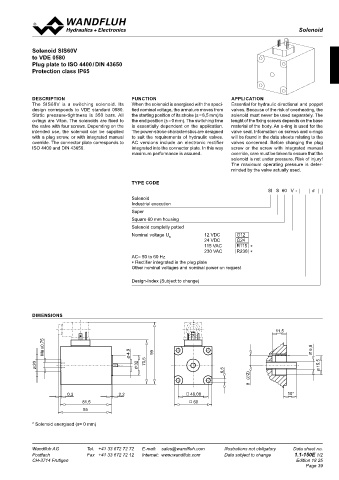

CHARACTERISTICS DC AC Solenoid SIS60V
Static pressure tightness 160 bar (seal diameter of valve Totale stroke (mm) 8,5 8,5 to VDE 0580
max. 32 mm) Working stroke (mm) 4 4 Plug plate to ISO 4400 / DIN 43650
Coil winding insulation class H Nominal power (W) 40
Connection / Power supply Over device plug connection to (VA) 46 Protection class IP65
ISO 4400 / DIN 43650, (2P+E), Armature weight (kg) 0,124 0,124
other connections on request Solenoid weight (kg) 1,90 1,90
Protection class EN 60 529 IP65 Voltage range (VDC) 10-250
Relative duty factor 100 % (VAC) 50-250∗
Reference temperature 50 °C DESCRIPTION FUNCTION APPLICATION
Seal Viton, other on request The SIS60V is a switching solenoid. Its When the solenoid is energised with the speci- Essential for hydraulic directional and poppet
Fluid Mineral oil, other fluid on request ∗ For AC voltages below 50 VAC DC solenoids plus rectifier plugs design corresponds to VDE standard 0580. fied nominal voltage, the armature moves from valves. Because of the risk of overheating, the
Switching cycles 15 000/h are available. Static pressure-tightness is 350 bars. All the starting position of its stroke (s = 8,5 mm) to solenoid must never be used separately. The
Mounting screws 4 x M6 (Quality 8.8) 21 VDC to 24 VAC o-rings are Viton. The solenoids are fixed to the end position (s = 0 mm). The switching time lenght of the fixing screws depends on the base
Housing Zinc coated steel housing, 32 VDC to 36 VAC the valve with four screws. Depending on the is essentially dependent on the application. material of the body. An o-ring is used for the
other surface treatments on request. 36 VDC to 42 VAC intended use, the solenoid can be supplied The power-stroke characteristics are designed valve seal. Information on screws and o-rings
42 VDC to 48 VAC with a plug screw, or with integrated manual to suit the requirements of hydraulic valves. will be found in the data sheets relating to the
override. The connector plate corresponds to AC versions include an electronic rectifier valves concerned. Before changing the plug
ISO 4400 and DIN 43650. integrated into the connector plate. In this way screw or the screw with integrated manual
12VDC 24VDC 115VAC 230VAC maximum performance is assured. override, care must be taken to ensure that the
Nominal resistance (Ω) 4 16,5 260 920 solenoid is not under pressure. Risk of injury!
Number of windings (-) 780 1’580 5’710 11’200 The maximum operating pressure is deter-
Inductivity (mH) 19 75 - - minded by the valve actually used.

TYPE CODE
SI S 60 V - #
Solenoid
PERfORMANCE ACCESSOIRES
Industrial execution
F = f (s) Force-stroke characteristics
Plug HB0 ∗ Article No. 239.2033 Super
Plug with integrated manual override HB8,5 ∗ Article No. 253.8002 Square 60 mm housing
F [N] ∗ acc. data sheet 1.1-300
350 K0204 Solenoid completly potted
Special manual override see data sheet 1.1-310 Nominal voltage U 12 VDC G12
N
300 Plug grey Article No. 219.2001 24 VDC G24
115 VAC
R115 ∗
Plug black Article No. 219.2002 230 VAC R230 ∗
250 AC= 50 to 60 Hz
Rectifier plug grey Article No. 219.2105 ∗ Rectifier integrated in the plug plate
Rectifier plug black Article No. 219.2106 Other nominal voltages and nominal power on request
200
Design-Index (Subject to change)
150

100

50 1 DIMENSIONS

2
0 11,5
8 x0,75 6,8
0 2 4 6 8 10 s [mm]
M 4,9 99
1: U = 100 % U Reference temperature = 20 °C (40W) 70,5
N
2: U = 90 % U Reference temperature = 50 °C 20 32 15,5
N
Solenoid in operating temperature (25W) 6,5
The values refer to U = 24 VDC. (∅2)
N
With other nominal voltages deviations can occur.
For curve 2 the solenoid has been mounted on a body  62 x 93. 8
0,3 2,2 48,08 10*
81,5 60
85

* Solenoid energised (s= 0 mm)

Technical explanation see data sheet 1.1-400

Wandfluh AG Tel. +41 33 672 72 72 E-mail: [email protected] Illustrations not obligatory Data sheet no. Wandfluh AG Tel. +41 33 672 72 72 E-mail: [email protected] Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.1-145E 2/2 Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.1-150E 1/2
CH-3714 Frutigen Edition 05 01 CH-3714 Frutigen Edition 18 25
