Solenoid
Solenoids Solenoids
46 33
KDE33/13x39

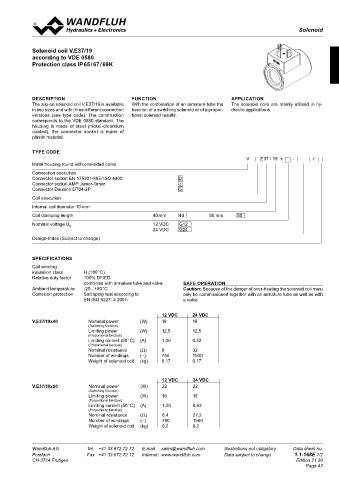

A TYPE LISTE / DIMENSIONS / GENERAL SPECIFICATIONS A Solenoid coil V.E37/19
39 according to VDE 0580
B B
Protection class IP 65 / 67 / 69K
1.5 46 13.1 33 Execution: K D E33/13 x 39-...
16.5 • 3-poles 2 P+E
KDE33/13x39 • Protection class IP 65
• • With corresponding mating connector
39 • • (not included in delivery)
B • • and professional assembly. B DESCRIPTION FUNCTION APPLICATION
46
KJE33/13x39 The slip-on solenoid coil V.E37/19 is available With the combination of an armature tube the The solenoid coils are mainly utilised in hy-
C C
1.5 13.1 in two sizes and with three different connection function of a switching solenoid or of a propor- draulic applications.
16.5 versions (see type code). The construction tional solenoid results.
39 corresponds to the VDE 0580 standard. The
housing is made of steel (nickel-chromium
coated), the connector socket is made of
plastic material.
46
KJE33/13x39
C C
TYPE CODE
D D
39 V E37 / 19 x - #
66 Execution: K G E33/13 x 39-… Metal housing round with one-sided collar
• 2-poles 2P
• only for U ≤ 75 VDC Connection execution D
Connector socket EN 175301-803 / ISO 4400
N
• Protection class IP 67 and 69 K
39 • • With corresponding mating connector Connector socket AMP Junior-Timer J
D 48 D Connector Deutsch DT04-2P G
KGE33/13x39 • • (not included in delivery)
• • and professional assembly. Gezeichnet 13.09.2016 BEH Coil execution

E Geprüft E
66 Freigegeben
Rev. Datum Name Änderungsnr. Änderungsbeschrieb M 1:1 Serie normgeprüft Internal coil diameter 19 mm
Gewicht
Magnetspule norm Ersetzt durch: 0.180 kg
Ersatz für:
KGE33/13x39 Dok.-Nr. 0205245 Format Coil clamping length 40 mm 40 50 mm 50
A2
Dokument darf ohne schriftliche Einwilligung weder kopiert, Art.-Nr. DB 1.1-160 Revision
39 verwertet noch an Dritte weitergegeben werden. 00
Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.
1 2 48 3 4 5 C:\00_wandfluh\verkauf\dokumentation\reg1.1\0205245 Blatt 1 von 1 Nominal voltage U 12 VDC G12
KGE33/13x39 N 24 VDC G24
Technical explanation see data sheet 1.1-400 and 1.1-410
E Gezeichnet 13.09.2016 BEH E

Geprüft
Freigegeben Design-Index (Subject to change)
Rev. Datum Name Änderungsnr. Änderungsbeschrieb M 1:1 Serie normgeprüft
Gewicht
Magnetspule norm Ersetzt durch: 0.180 kg
Ersatz für:
KGE33/13x39 Dok.-Nr. 0205245 Format
A2
Dokument darf ohne schriftliche Einwilligung weder kopiert, Art.-Nr. Revision
verwertet noch an Dritte weitergegeben werden. DB 1.1-160 00
Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt. SPECIFICATIONS
1 2 3 4 5 C:\00_wandfluh\verkauf\dokumentation\reg1.1\0205245 Blatt 1 von 1
Coil winding
insulation class H (180 °C)
Relative duty factor 100% DF/ED
combined with armature tube and valve SAFE OPERATION
Ambient temperature -20...+50 °C Caution: Because of the danger of over-heating the solenoid coil must
Corrosion protection Salt spray test according to only be commissioned together with an armature tube as well as with
EN ISO 9227: ≥ 200 h a valve.
12 VDC 24 VDC
V.E37/19x40 Nominal power (W) 18 18
(Switching function)
Limiting power (W) 12,5 12,5
(Proportional function)
Limiting current (50 °C) (A) 1,00 0,52
(Proportional function)
Nominal resistance (Ω) 8 32
Number of windings (–) 750 1500
Weight of solenoid coil (kg) 0,17 0,17
12 VDC 24 VDC
V.E37/19x50 Nominal power (W) 22 22
(Switching function)
Limiting power (W) 16 15
(Proportional function)
Limiting current (50 °C) (A) 1,20 0,63
(Proportional function)
Nominal resistance (Ω) 6,4 27,2
Number of windings (–) 780 1560
Weight of solenoid coil (kg) 0,2 0,2
Wandfluh AG Tel. +41 33 672 72 72 E-mail: [email protected] Illustrations not obligatory Data sheet no. Wandfluh AG Tel. +41 33 672 72 72 E-mail: [email protected] Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.1-160E 2/2 Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.1-168E 1/2
CH-3714 Frutigen Edition 20 51 CH-3714 Frutigen Edition 21 30
