Solenoids Solenoids
Solenoid

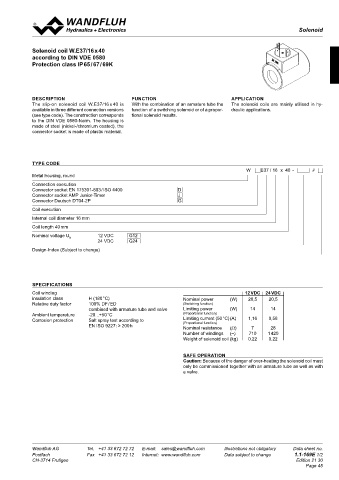

TYPE LIST / DIMENSIONS / GENERAL SPECIFICATIONS Solenoid coil W.E37/16 x 40
according to DIN VDE 0580
Protection class IP 65 / 67 / 69K

47.5
Ø 23.2 Execution: V D E37/19 x ...
• 3-poles 2 P+E
• Protection class IP 65
• • With corresponding mating connector DESCRIPTION FUNCTION APPLICATION
47.5 40 / 50 • • (not included in delivery) The slip-on solenoid coil W.E37/16 x 40 is With the combination of an armature tube the The solenoid coils are mainly utilised in hy-
Ø 23.2 • • and professional assembly. available in three different connection versions function of a switching solenoid or of a propor- draulic applications.
(see type code). The construction corresponds tional solenoid results.
to the DIN VDE 0580-Norm. The housing is
Ø19 made of steel (nickel-/chromium coated), the
Ø 37 40 / 50
47.5 connector socket is made of plastic material.
Ø 23.2
47.5
Ø19
Ø 37 40 / 50
47.5 40 / 50 Execution: V J E37/19 x … TYPE CODE W E37 / 16 x 40 - #

• 2-poles 2P Metal housing, round
Ø19 • only for U ≤ 75 VDC
N
Ø 37 • Protection class IP 66 Connection execution
55.3 40 / 50 • • With corresponding mating connector Connector socket EN 175301-803 / ISO 4400 D
47.5 • • (not included in delivery) Connector socket AMP Junior-Timer J
• • and professional assembly. Connector Deutsch DT04-2P G
40 / 50 Coil execution
55.3 Internal coil diameter 16 mm
40 / 50 Coil length 40 mm

Nominal voltage U 12 VDC G12
40 / 50 24 VDC G24
N
55.3 Design-Index (Subject to change)
Execution: V G E37/19 x …
• 2-poles 2P
• only for U ≤ 75 VDC
N
40 / 50 • Protection class IP 67 and 69 K
• • With corresponding mating connector
• • (not included in delivery)
• • and professional assembly. SPECIFICATIONS
Coil winding 12 VDC 24 VDC
insulation class H (180 °C) Nominal power (W) 20,5 20,5
Relative duty factor 100% DF / ED (Switching function)
combined with armature tube and valve Limiting power (W) 14 14
Technical explanation see data sheet 1.1-400 and 1.1-410 Ambient temperature -20...+50 °C (Proportional function)
Corrosion protection Salt spray test according to Limiting current (50 °C) (A) 1,16 0,58
(Proportional function)
EN ISO 9227: ≥ 200 h Nominal resistance (Ω) 7 28
Number of windings (–) 710 1 420
Weight of solenoid coil (kg) 0,22 0,22

SAFE OPERATION
Caution: Because of the danger of over-heating the solenoid coil must
only be commissioned together with an armature tube as well as with
a valve.
