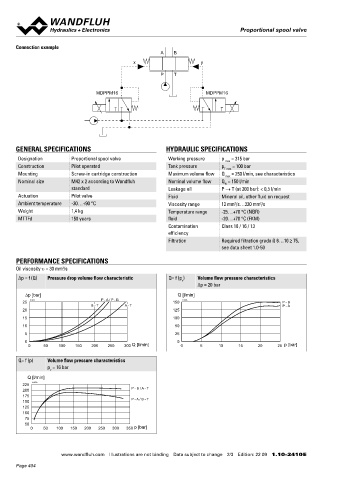

P. 404
Proportional spool valve
Proportional spool valve Proportional spool valve
Connection example DIMENSIONS HYDRAULIC CONNECTION
A B Cavity drawing according to Wandfluh standard
x y
M42x2
P T
(x)
s 41
MDPPM16 MDPPM16
(4)
41
M D = 80...100 Nm 70 (3)
Ø 48
(2)
x
M42 x 2 (1)
GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS T
Designation Proportional spool valve Working pressure p = 315 bar (y)
max
Construction Pilot operated Tank pressure p T max = 100 bar A Note! For detailed cavity drawing and cavity tools see data
Mounting Screw-in cartridge construction Maximum volume flow Q = 250 l/min, see characteristics sheet 2.13-1052
max
Nominal size M42 x 2 according to Wandfluh Nominal volume flow Q = 150 l/min 139
N
standard Leakage oil P → T (at 200 bar): < 0,5 l/min P
Actuation Pilot valve Fluid Mineral oil, other fluid on request
Ambient temperature -30…+90 °C Viscosity range 12 mm /s…320 mm /s B
2
2
Weight 1,4 kg Temperature range -25…+70 °C (NBR)
MTTFd 150 years fluid -20…+70 °C (FKM)
Contamination Class 18 / 16 / 13 y
efficiency
Filtration Required filtration grade ß 6…10 ≥ 75,
see data sheet 1.0-50 ACCESSORIES ACTUATION
PERFORMANCE SPECIFICATIONS Proportional pressure valves Register 2.3 Actuation Pilot control
Oil viscosity u = 30 mm /s Proportional amplifier Register 1.13 Minimum pilot pressure 4,5 bar
2
Maximum pilot
30 bar
∆p = f (Q) Pressure drop volume flow characteristic Q= f (p ) Volume flow pressure characteristics Technical explanations Data sheet 1.0-100
v pressure
∆p = 20 bar Filtration Data sheet 1.0-50
∆p [bar] Q [l/min]
25 K1044 P - A / P - B 150 K1045 P - B
B - T A - T P - A
20 125
INSTALLATION NOTES SURFACE TREATMENT
15 100 The external parts of the cartridge body are zink / nickel coated
10 50 Mounting type Screw-in cartridge M42 x 2
Mounting position Any, preferably horizontal
5 25
Tightening torque M = 80…100 Nm Screw-in cartridge
0 0 D
0 50 100 150 200 250 300 Q [l/min] 0 5 10 15 20 25 p [bar]
Q= f (p) Volume flow pressure characteristics STANDARDS SEALING MATERIAL
p = 16 bar NBR as standard
v Mounting interface Wandfluh standard
Q [l/min] Contamination ISO 4406
225 K4279 efficiency
200 P - B / A - T
175
150 P - A / B - T
125
100
75
50
0 50 100 150 200 250 300 350 p [bar]
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]
www.wandfluh.com Illustrations are not binding Data subject to change 2/3 Edition: 22 09 1.10-2410 E www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 22 09 1.10-2410 E
