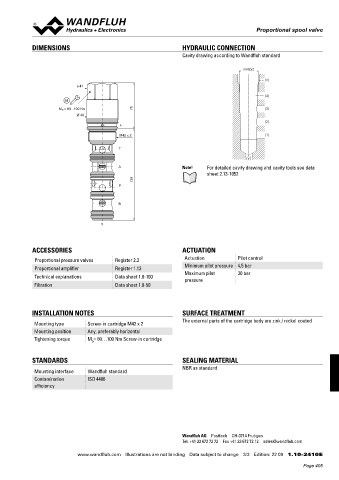

Proportional spool valve
Proportional spool valve
DIMENSIONS HYDRAULIC CONNECTION
Cavity drawing according to Wandfluh standard
M42x2
(x)
s 41
(4)
41
M D = 80...100 Nm 70 (3)
Ø 48
(2)
x
M42 x 2 (1)
T
(y)
A Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1052
139
P
B
y
ACCESSORIES ACTUATION
Proportional pressure valves Register 2.3 Actuation Pilot control
Minimum pilot pressure 4,5 bar
Proportional amplifier Register 1.13
Technical explanations Data sheet 1.0-100 Maximum pilot 30 bar
pressure
Filtration Data sheet 1.0-50
INSTALLATION NOTES SURFACE TREATMENT
The external parts of the cartridge body are zink / nickel coated
Mounting type Screw-in cartridge M42 x 2
Mounting position Any, preferably horizontal
Tightening torque M = 80…100 Nm Screw-in cartridge
D
STANDARDS SEALING MATERIAL
NBR as standard
Mounting interface Wandfluh standard
Contamination ISO 4406
efficiency
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]
www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 22 09 1.10-2410 E
