Solenoid
Solenoids Solenoids

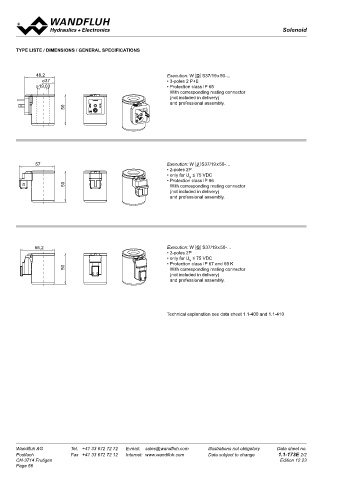

tyPE lIStE / DImEnSIonS / GEnErAl SPEcIfIcAtIonS Solenoid coil M.S35 /19 x 50
to VDE 0580
Protection class IP65 / IP67

48,2 Execution: W D S37/19 x 50-...
Ø 37 • 3-poles 2 P+E
Ø19,03 • Protection class IP 65
• With corresponding mating connector •
48,2 • (not included in delivery) DESCRIPTION FUNCTION
Ø 37 • and professional assembly.
Ø19,03 50 The slip-on solenoid coil M.S35/19 x 53 is available with different types In combination with the corresponding armature tube the function of an
of electric connections. The AC voltage type incorporates a rectifier.
on-off solenoid or proportional solenoid will be obtained.
The available AC voltages are listed in the type code section. The
construction corresponds to standard VDE 0580. The steel housing is
48,2 zinc-/nickel-coated as standard.
Ø 37 50
Ø19,03
57

50 TYPE CODE
57 50 Execution: W J S37/19 x 50-… M S35 / 19 x 50 - - #
• 2-poles 2P Metal housing, square
• only for U ≤ 75 VDC Connection execution
N
• Protection class IP 66
50 • With corresponding mating connector Connector socket EN175301-803 / ISO 4400 D Flying leads L (only DC)
J (only DC) Cable
K
Connector socket AMP Junior-Timer
57 • (not included in delivery) Connector Deutsch DT04-2P G (only DC) Bayonet connector VG 95234 B
55,2 • and professional assembly. Screw clamp X (only DC)
Coil execution
50 50 Internal coil diameter 19 mm
55,2
Coil length 50 mm
Voltage Direct current G Alternating current R
50 Nominal voltage 12 VDC 12 115 VAC 115
55,2 Execution: W G S37/19 x 50-… 24 VDC 24 230 VAC 230
• 2-poles 2P Standard
• only for U ≤ 75 VDC Special cable execution M28
N
• Protection class IP 67 and 69 K With pressure compensation M35 (only DC)
50 • With corresponding mating connector Special screw clamp M209 (only DC)
• (not included in delivery) Screw clamp and electric wiring M222 (only DC)
• and professional assembly. Design-Index (Subject to change)

SPECIFICATIONS
Technical explanation see data sheet 1.1-400 and 1.1-410 Coil winding min. H (180 °C) 12 VDC 24 VDC 115 VAC 230 VAC
insulation class Nominal power (W) 26 26 26 26
Protection class depending on the connector version (Switching function)
IP65 or IP67 according to EN 60 529 Limiting power (W) 16 16 – –
(if correctly mounted) (Proportional function)
Relative duty factor 100 % DF / 5 min Limiting current (50 °C) (A) 1,36 0,68 – –
when mounted on armature tube and valve (Proportional function) (Ω) 5,6 22 410 1650
Nominal resistance
Ambient temperature See temperature curve on page 4 Number of windings (–) 718 1 400 6100 11 850
Nominal voltage range 10 – 250 VDC Weight of solenoid coil (kg) 0,32 0,32 0,32 0,32
24 – 250 VAC
Corrosion protection Salt spray test in accordance with
EN ISO 9227 > = 1000 hours

SAFE OPERATION NOTE!
The effective heat emissions depends on the installation
Caution: To avoid overheating the coil may only be energised conditions (heat emission surface, air circulation, etc.), these
when mounted on an armature tube and valve.
influence the described area of application.
