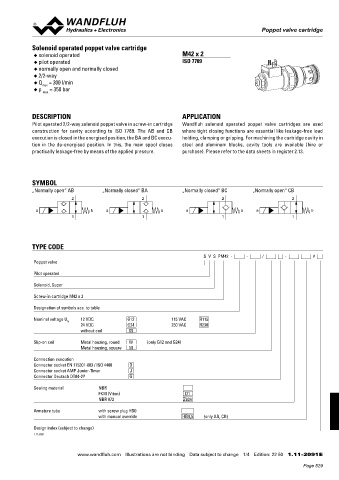

Poppet valve
Poppet valve cartridge

Solenoid operated poppet valve cartridge
◆ solenoid operated M42 x 2
◆ pilot operated ISO 7789
◆ normally open and normally closed
◆ 2/2-way
◆ Q = 300 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Pilot operated 2/2-way solenoid poppet valve in screw-in cartridge Wandfluh solenoid operated poppet valve cartridges are used
construction for cavity according to ISO 7789. The AB and CB where tight closing functions are essential like leakage-free load
execution is closed in the energised position, the BA and BC execu- holding, clamping or gripping. For machining the cartridge cavity in
tion in the de-energised position. In this, the main spool closes steel and aluminum blocks, cavity tools are available (hire or

practically leakage-free by means of the applied pressure. purchase). Please refer to the data sheets in register 2.13.

SYMBOL
„Normally open“ AB „Normally closed“ BA „Normally closed“ BC „Normally open“ CB
2 2 2 2

a b a b a b a b
1 1 1 1

TYPE CODE

S V S PM42 - - / - #
Poppet valve
Pilot operated

Solenoid, Super
Screw-in cartridge M42 x 2

Designation of symbols acc. to table
Nominal voltage U N 12 VDC G12 115 VAC R115
24 VDC G24 230 VAC R230
without coil X5
Slip-on coil Metal housing, round W (only G12 and G24)
Metal housing, square M
Connection execution
Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior-Timer J
Connector Deutsch DT04-2P G
Sealing material NBR
FKM (Viton) D1
NBR 872 Z604
Armature tube with screw plug HB0
with manual override HB4,5 (only AB, CB)
Design index (subject to change)
1.11-2091

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 22 50 1.11-2091 E
