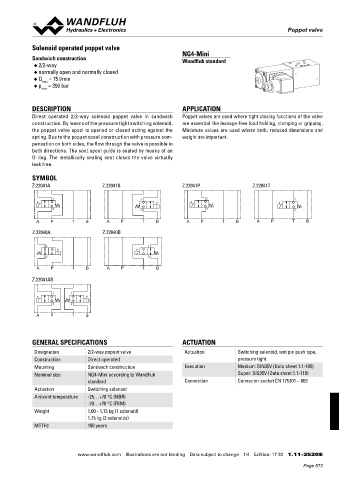

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve
NG4-Mini
Sandwich construction Wandfluh standard
◆ 2/2-way
◆ normally open and normally closed
◆ Q = 15 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-way solenoid poppet valve in sandwich Poppet valves are used where tight closing functions of the valve
construction. By means of the pressure tight switching solenoid, are essential like leakage-free load holding, clamping or gripping.
the poppet valve spool is opened or closed acting against the Miniature values are used where both, reduced dimensions and
spring. Due to the poppet spool construction with pressure com- weight are important.

pensation on both sides, the flow through the valve is possible in
both directions. The seat spool guide is sealed by means of an
O-ring. The metallically sealing seat closes the valve virtually
leak free.

SYMBOL
Z.22041A Z.22041B Z.22041P Z.22041T

1 1 2 1
a b a a
2 2 1 2

A P T B A P T B A P T B A P T B

Z.22040A Z.22040B

1 1
b a
2 2
A P T B A P T B

Z.22041AB

1 1
a b
2 2
A P T B

GENERAL SPECIFICATIONS ACTUATION
Designation 2/2-way poppet valve Actuation Switching solenoid, wet pin push type,
Construction Direct operated pressure tight
Mounting Sandwich construction Execution Medium: SIN35V (Data sheet 1.1-105)
Nominal size NG4-Mini according to Wandfluh Super: SIS35V (Data sheet 1.1-110)
standard Connection Connector socket EN 175301 – 803
Actuation Switching solenoid
Ambient temperature -25…+70 °C (NBR)
-20…+70 °C (FKM)
Weight 1,00 - 1,15 kg (1 solenoid)
1,75 kg (2 solenoids)
MTTFd 150 years
