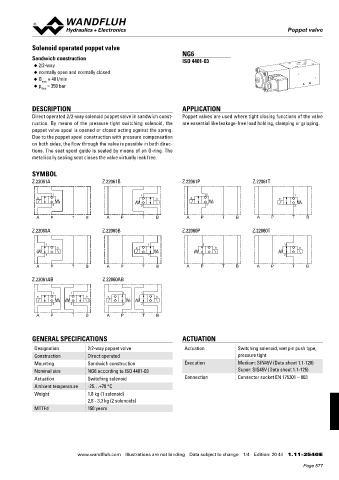

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve
NG6
Sandwich construction ISO 4401-03
◆ 2/2-way
◆ normally open and normally closed
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-way solenoid poppet valve in sandwich const- Poppet valves are used where tight closing functions of the valve
ruction. By means of the pressure tight switching solenoid, the are essential like leakage-free load holding, clamping or gripping.
poppet valve spool is opened or closed acting against the spring.
Due to the poppet spool construction with pressure compensation
on both sides, the flow through the valve is possible in both direc-
tions. The seat spool guide is sealed by means of an O-ring. The
metallically sealing seat closes the valve virtually leak free.

SYMBOL
Z.22061A Z.22061B Z.22061P Z.22061T

1 1 2 1
a b a a
2 2 1 2

A P T B A P T B A P T B A P T B

Z.22060A Z.22060B Z.22060P Z.22060T

1 1 2 1
b a b b
2 2 1 2
A P T B A P T B A P T B A P T B

Z.22061AB Z.22060AB

1 1 1 1
a b a b
2 2 2 2
A P T B A P T B

GENERAL SPECIFICATIONS ACTUATION

Designation 2/2-way poppet valve Actuation Switching solenoid, wet pin push type,
Construction Direct operated pressure tight
Mounting Sandwich construction Execution Medium: SIN45V (Data sheet 1.1-120)
Nominal size NG6 according to ISO 4401-03 Super: SIS45V (Data sheet 1.1-125)
Actuation Switching solenoid Connection Connector socket EN 175301 – 803
Ambient temperature -25…+70 °C
Weight 1,8 kg (1 solenoid)
2,8 - 3,3 kg (2 solenoids)
MTTFd 150 years

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 20 44 1.11-2540 E
