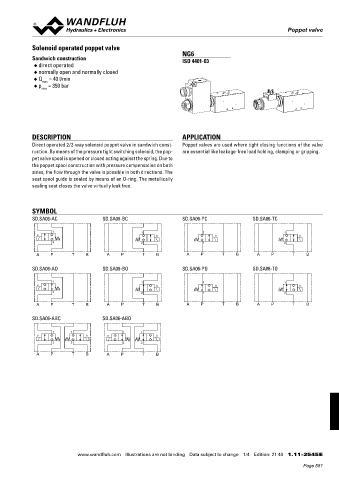

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve
NG6
Sandwich construction ISO 4401-03
◆ direct operated
◆ normally open and normally closed
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-way solenoid poppet valve in sandwich const- Poppet valves are used where tight closing functions of the valve
ruction. By means of the pressure tight switching solenoid, the pop - are essential like leakage-free load holding, clamping or gripping.
pet valve spool is opened or closed acting against the spring.Due to

the poppet spool construction with pressure compensation on both
sides, the flow through the valve is possible in both directions. The
seat spool guide is sealed by means of an O-ring. The metallically
sealing seat closes the valve virtually leak free.

SYMBOL
SD.SA06-AC SD.SA06-BC SD.SA06-PC SD.SA06-TC

1 1 2 1
a b b b
2 2 1 2
A P T B A P T B A P T B A P T B

SD.SA06-AO SD.SA06-BO SD.SA06-PO SD.SA06-TO

1 1 2 1
a b b b
2 2 1 2
A P T B A P T B A P T B A P T B

SD.SA06-ABC SD.SA06-ABO

1 1 1 1
a b a b
2 2 2 2
A P T B A P T B

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 21 40 1.11-2545 E
