Solenoid operated poppet valve Solenoid operated poppet valve
Poppet valve

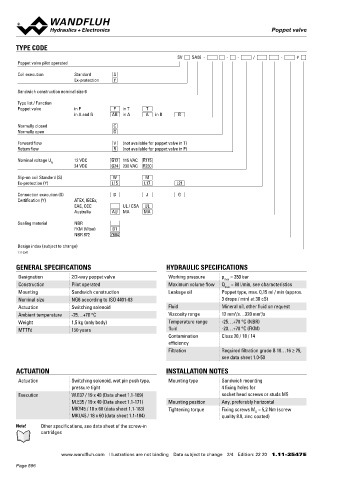

TYPE CODE PERFORMANCE SPECIFICATIONS
SV SA06 - - - / - # Attention! The performance data especially the „pressure- Note! Detailed characteristics as well as further hydraulic
Poppet valve pilot operated flowcharacteristic„ on the data sheets of the screw-in specifications can be found on the data sheet of the
catridges refere to the screw-in cartridges only. The cartridge installed.
Coil execution Standard S additional pressure drop of the sandwich body must be
Ex-protection Y taken into consideration.
Sandwich construction nominal size 6

Type list / Function
Poppet valve in P P in T T VALVES INSTALLED
in A and B AB in A A in B B The following screw-in cartridges are used in the sandwich body.

Normally closed C Article Description Data sheet no.
Normally open O SVSPM22-BC Poppet valve, normally closed 1.11-2082
SVSPM22-CB Poppet valve, normally open 1.11-2082
Forward flow V (not available for poppet valve in T)
Return flow R (not available for poppet valve in P) SVYPM22-BC Poppet valve ex-protection, normally closed 1.11-2084
SVYPM22-CB Poppet valve ex-protection, normally open 1.11-2084
Nominal voltage U N 12 VDC G12 115 VAC R115
24 VDC G24 230 VAC R230
Slip-on coil Standard (S) W M
Ex-protection (Y) L15 L17 L21 HYDRAULIC CONNECTION ACCESSORIES
Fixing screws Data sheet 1.0-60
Connection execution (S) D J G 17.8
Certification (Y) ATEX, IECEx, Threaded subplates Data sheet 2.9-30
EAC, CCC UL / CSA UL T Multi-station subplates Data sheet 2.9-60
Australia AU MA MA
31 A B 21 32.5 Module type manifold blocks Data sheet 2.9-100
Sealing material NBR Technical explanations Data sheet 1.0-100
FKM (Viton) D1 P
NBR 872 Z604 Filtration Data sheet 1.0-50
21.5 Relative duty factor Data sheet 1.1-430
Design index (subject to change) 40.5
1.11-2547

GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS
Designation 2/2-way poppet valve Working pressure p = 350 bar PARTS LIST MANUAL OVERRIDE
max
Construction Pilot operated Maximum volume flow Q = 80 l/min, see characteristics
max Screw plug (HB0), no actuation possible
Mounting Sandwich construction Leakage oil Poppet type, max. 0,15 ml / min (approx. Position Article Description Optionally: HB4,5, HN(K) or HG(K)
Nominal size NG6 according to ISO 4401-03 3 drops / min) at 30 cSt 10 160.2093 O-ring ID 9,25 x 1,78 (NBR) → See data sheet 1.1-311
Actuation Switching solenoid Fluid Mineral oil, other fluid on request 160.6092 O-ring ID 9,25 x 1,78 (FKM)
Ambient temperature -25…+70 °C Viscosity range 12 mm /s…320 mm /s 20 238.5404 Screw plug VSTI M22 x 1,5
2
2
Weight 1,5 kg (only body) Temperature range -25…+70 °C (NBR)
MTTFd 150 years fluid -20…+70 °C (FKM) STANDARDS SEALING MATERIAL
Contamination Class 20 / 18 / 14 Mounting interface ISO 4401-03 NBR or FKM (Viton) as standard, choice in the type code
efficiency
Filtration Required filtration grade ß 10…16 ≥ 75, Solenoids DIN VDE 0580
see data sheet 1.0-50 Connection execution D EN 175301 – 803 SURFACE TREATMENT
Protection class EN 60 529 ◆ The sandwich bodies are zinc-nickel coated
ACTUATION INSTALLATION NOTES Contamination efficiency ISO 4406

Actuation Switching solenoid, wet pin push type, Mounting type Sandwich mounting
pressure tight 4 fixing holes for
Execution W.E37 / 19 x 40 (Data sheet 1.1-169) socket head screws or studs M5
M.E35 / 19 x 40 (Data sheet 1.1-171) Mounting position Any, preferably horizontal
MKY45 / 18 x 60 (data sheet 1.1-183) Tightening torque Fixing screws M = 5,2 Nm (screw
D
MKU45 / 18 x 60 (data sheet 1.1-184) quality 8.8, zinc coated)
Note! Other specifications, see data sheet of the screw-in
cartridges

www.wandfluh.com Illustrations are not binding Data subject to change 2/4 Edition: 22 20 1.11-2547 E www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 22 20 1.11-2547 E
