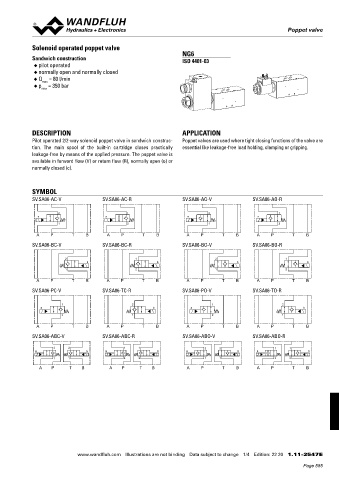

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve
NG6
Sandwich construction ISO 4401-03
◆ pilot operated
◆ normally open and normally closed
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Pilot operated 2/2-way solenoid poppet valve in sandwich construc- Poppet valves are used where tight closing functions of the valve are
tion. The main spool of the built-in cartridge closes practically essential like leakage-free load holding, clamping or gripping.

leakage-free by means of the applied pressure. The poppet valve is
available in forward flow (V) or return flow (R), normally open (o) or

normally closed (c).
SYMBOL
SV.SA06-AC-V SV.SA06-AC-R SV.SA06-AO-V SV.SA06-AO-R
2 1 2 1
a a a a
1 2 1 2
A P T B A P T B A P T B A P T B

SV.SA06-BC-V SV.SA06-BC-R SV.SA06-BO-V SV.SA06-BO-R

2 1 2 1
b b b b
1 2 1 2
A P T B A P T B A P T B A P T B

SV.SA06-PC-V SV.SA06-TC-R SV.SA06-PO-V SV.SA06-TO-R

1 2 1 2
a b a b
2 1 2 1
A P T B A P T B A P T B A P T B

SV.SA06-ABC-V SV.SA06-ABC-R SV.SA06-ABO-V SV.SA06-ABO-R

2 2 1 1 2 2 1 1
a b a b a b a b
1 1 2 2 1 1 2 2
A P T B A P T B A P T B A P T B

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 22 20 1.11-2547 E
