Solenoid operated poppet valve Solenoid operated poppet valve
Poppet valve

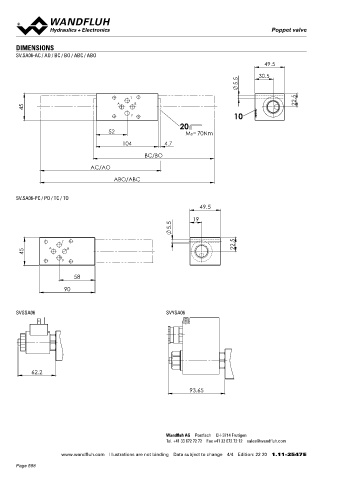

DIMENSIONS Solenoid operated poppet valve
SV.SA06-AC / AO / BC / BO / ABC / ABO Sandwich construction NG10
49.5 ◆ 2/2-way ISO 4401-05

30.5 ◆ normally open and normally closed
5.5 ◆ Q = 80 l/min
max
◆ p = 350 bar
max

T 22.5
45 A B
P 10 DESCRIPTION APPLICATION
20 Direct operated 2/2-way solenoid poppet valve in sandwich Poppet valves are used where tight closing functions of the valve
52 MD= 70Nm construction. By means of the pressure tight switching solenoid, are essential like leakage-free load holding, clamping or gripping.
the poppet valve spool is opened or closed acting against the
104 4.7 spring. Due to the poppet spool construction with pressure com-
pensation on both sides, the flow through the valve is possible in
BC/BO both directions. The seat spool guide is sealed by means of an
O-ring. The metallically sealing seat closes the valve virtually
AC/AO leak free.

ABO/ABC
SYMBOL
Z.22101A Z.22101B Z.22101P Z.22101T
SV.SA06-PC / PO / TC / TO
49.5 a 1 1 b a 2 a 1

2 2 1 2
19
5.5 A P T B A P T B A P T B A P T B

T 22.5 Z.22100A Z.22100B Z.22100P Z.22100T
45 A B 1 1 2 1
b a b b
P
2 2 1 2
58 A P T B A P T B A P T B A P T B

90 Z.22101AB Z.22100AB

1 1 1 1
a b a b
SVSSA06 SVYSA06 2 2 2 2

A P T B A P T B

GENERAL SPECIFICATIONS ACTUATION

Designation 2/2-way poppet valve Actuation Switching solenoid, wet pin push type,
Construction Direct operated pressure tight
Mounting Sandwich construction Execution Medium: SIN60V (Data sheet 1.1-145)
62.2
Nominal size NG10 according to ISO 4401-05 Super: SIS60V (Data sheet 1.1-150)

Actuation Switching solenoid Connection Connector socket EN 175301 – 803
93.65 Ambient temperature -25…+70 °C (NBR)
-20…+70 °C (FKM)
Weight 4,7 kg (1 solenoid)
7,0 - 11,0 kg (2 solenoids)
MTTFd 150 years

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 4/4 Edition: 22 20 1.11-2547 E www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 17 33 1.11-2560 E
