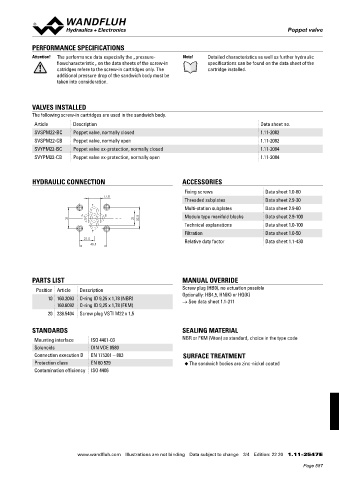

Solenoid operated poppet valve
Poppet valve

PERFORMANCE SPECIFICATIONS
Attention! The performance data especially the „pressure- Note! Detailed characteristics as well as further hydraulic
flowcharacteristic„ on the data sheets of the screw-in specifications can be found on the data sheet of the
catridges refere to the screw-in cartridges only. The cartridge installed.
additional pressure drop of the sandwich body must be
taken into consideration.

VALVES INSTALLED
The following screw-in cartridges are used in the sandwich body.
Article Description Data sheet no.
SVSPM22-BC Poppet valve, normally closed 1.11-2082
SVSPM22-CB Poppet valve, normally open 1.11-2082
SVYPM22-BC Poppet valve ex-protection, normally closed 1.11-2084
SVYPM22-CB Poppet valve ex-protection, normally open 1.11-2084

HYDRAULIC CONNECTION ACCESSORIES
Fixing screws Data sheet 1.0-60
17.8
Threaded subplates Data sheet 2.9-30
T
Multi-station subplates Data sheet 2.9-60
A B Module type manifold blocks Data sheet 2.9-100
31 21 32.5
Technical explanations Data sheet 1.0-100
P
Filtration Data sheet 1.0-50
21.5 Relative duty factor Data sheet 1.1-430
40.5

PARTS LIST MANUAL OVERRIDE

Position Article Description Screw plug (HB0), no actuation possible
Optionally: HB4,5, HN(K) or HG(K)
10 160.2093 O-ring ID 9,25 x 1,78 (NBR) → See data sheet 1.1-311
160.6092 O-ring ID 9,25 x 1,78 (FKM)
20 238.5404 Screw plug VSTI M22 x 1,5

STANDARDS SEALING MATERIAL
Mounting interface ISO 4401-03 NBR or FKM (Viton) as standard, choice in the type code
Solenoids DIN VDE 0580
Connection execution D EN 175301 – 803 SURFACE TREATMENT
Protection class EN 60 529 ◆ The sandwich bodies are zinc-nickel coated
Contamination efficiency ISO 4406

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 22 20 1.11-2547 E
