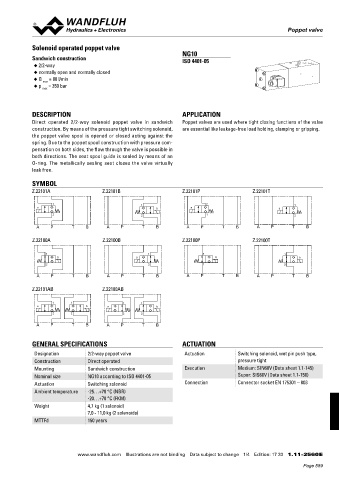

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve
NG10
Sandwich construction ISO 4401-05
◆ 2/2-way
◆ normally open and normally closed
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-way solenoid poppet valve in sandwich Poppet valves are used where tight closing functions of the valve
construction. By means of the pressure tight switching solenoid, are essential like leakage-free load holding, clamping or gripping.
the poppet valve spool is opened or closed acting against the
spring. Due to the poppet spool construction with pressure com-
pensation on both sides, the flow through the valve is possible in
both directions. The seat spool guide is sealed by means of an
O-ring. The metallically sealing seat closes the valve virtually
leak free.

SYMBOL
Z.22101A Z.22101B Z.22101P Z.22101T

1 1 2 1
a b a a
2 2 1 2
A P T B A P T B A P T B A P T B

Z.22100A Z.22100B Z.22100P Z.22100T

1 1 2 1
b a b b
2 2 1 2
A P T B A P T B A P T B A P T B

Z.22101AB Z.22100AB

1 1 1 1
a b a b
2 2 2 2

A P T B A P T B

GENERAL SPECIFICATIONS ACTUATION

Designation 2/2-way poppet valve Actuation Switching solenoid, wet pin push type,
Construction Direct operated pressure tight
Mounting Sandwich construction Execution Medium: SIN60V (Data sheet 1.1-145)
Nominal size NG10 according to ISO 4401-05 Super: SIS60V (Data sheet 1.1-150)
Actuation Switching solenoid Connection Connector socket EN 175301 – 803
Ambient temperature -25…+70 °C (NBR)
-20…+70 °C (FKM)
Weight 4,7 kg (1 solenoid)
7,0 - 11,0 kg (2 solenoids)
MTTFd 150 years
