Solenoid operated poppet valve G.2204
Poppet valve

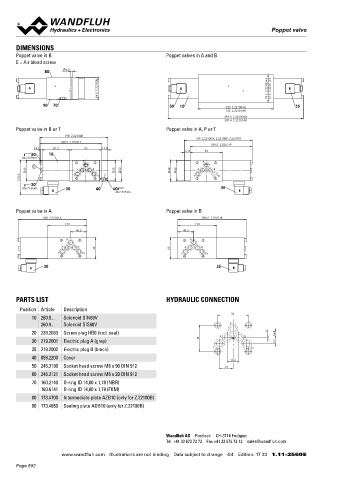

DIMENSIONS Solenoid operated poppet valve
Poppet valve in B Poppet valves in A and B Installation in pipes NG4
E = Air bleed screw
◆ 2/2-way
80 6.5 ◆ normally open and normally closed
threaded connection 1/4“
64.5 Z.22100B 79.5 Z.22100AB 61.5 Z.22101AB ◆ p = 350 bar
◆
A A B ◆ Q = 15 l/min
max
max
90 70 30 10 220 Z.22100AB 35
133 Z.22101AB
394.4 Z.22100AB DESCRIPTION APPLICATION
307.4 Z.22101AB
Direct operated 2/2-way solenoid poppet valve for installation in Poppet valves are used where tight closing functions of the valve
Poppet valve in B or T Poppet valve in A, P or T pipes. By means of the pressure tight switching solenoid, the pop- are essential like leakage-free load holding, clamping or gripping.
198 Z.22100B pet valve spool is opened or closed acting against the spring. Due to
198 Z.22100A, Z.22100P, Z.22100T
180.2 Z.22101T the poppet spool construction with pressure compensation on both
180.2 Z.22101P
4 81.2 93 17.8 17.8 93 sides, the flow through the valve is possible in both directions. The
50 10
MD= 8.9Nm seat spool guide is sealed by means of an O-ring. The metallically
P P sealing seat closes the valve virtually leak free.

E
60 A B 60 62 62 60 A B
100.8 T To T To SYMBOL
20 G.22041 G.22040
MD= 9.5Nm 30 40 60 35
A MD= 8.9Nm B A A

Poppet valve in A Poppet valve in B P P
200 Z.22101A 200.2 Z.22101B
113 113
46.5 46.5 TYPE CODE
P P G 2 2 04 - - #
Threaded connection
A B A B
62 62
T To T To
Solenoid, Medium M
Solenoid, Super S
30 35
A B
2 way (connections)
2 switching positions

PARTS LIST HYDRAULIC CONNECTION Nominal size 4
Position Article Description Normally closed 1
54 Normally open 0
10 260.8... Solenoid SIN60V
260.9... Solenoid SIS60V P Nominal voltage U 12 VDC G12 115 VAC R115

N 24 VDC G24 230 VAC R230
20 239.2033 Screw plug HB0 (incl. seal) A B 1.5 16.8
30 219.2001 Electric plug A (grey) 46 9.7 Sealing material NBR
35 219.2002 Electric plug B (black) T To FKM (Viton) D1
40 059.2200 Cover
20.8 Design index (subject to change)
50 246.3190 Socket head screw M6 x 90 DIN 912 24 1.11-2820
60 246.3121 Socket head screw M6 x 20 DIN 912
70 160.2140 O-ring ID 14,00 x 1,78 (NBR) COMMISSIONING ACTUATION

160.6141 O-ring ID 14,00 x 1,78 (FKM) Attention! When commissioning, the valve must be vented under
80 173.4700 Intermediate plate AZB10 (only for Z.22100B) pressure (max. 2 rotations of screw E). Actuation Switching solenoid, wet pin push type,
pressure tight
90 173.4650 Sealing plate ADB10 (only for Z.22100B)
Execution Medium: SIN35V (Data sheet 1.1-105)
Super: SIS35V (Data sheet 1.1-110)
Connection Connector socket EN 175301 – 803

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 4/4 Edition: 17 33 1.11-2560 E www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 22 1.11-2820 E
