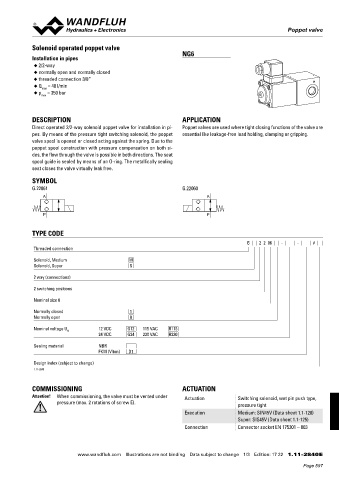

Page 597 - Softbound_Edition_19_en

G.2206
Poppet valve

Solenoid operated poppet valve
NG6
Installation in pipes
◆ 2/2-way
◆ normally open and normally closed
◆ threaded connection 3/8“
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-way solenoid poppet valve for installation in pi- Poppet valves are used where tight closing functions of the valve are

pes. By means of the pressure tight switching solenoid, the poppet essential like leakage-free load holding, clamping or gripping.

valve spool is opened or closed acting against the spring. Due to the
poppet spool construction with pressure compensation on both si-
des, the flow through the valve is possible in both directions. The seat
spool guide is sealed by means of an O-ring. The metallically sealing
seat closes the valve virtually leak free.
SYMBOL
G.22061 G.22060
A A

P P

TYPE CODE

G 2 2 06 - - #
Threaded connection
Solenoid, Medium M
Solenoid, Super S
2 way (connections)

2 switching positions
Nominal size 6

Normally closed 1
Normally open 0
Nominal voltage U N 12 VDC G12 115 VAC R115
24 VDC G24 230 VAC R230
Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
1.11-2840

COMMISSIONING ACTUATION
Attention! When commissioning, the valve must be vented under Actuation Switching solenoid, wet pin push type,
pressure (max. 2 rotations of screw E). pressure tight

Execution Medium: SIN45V (Data sheet 1.1-120)
Super: SIS45V (Data sheet 1.1-125)
Connection Connector socket EN 175301 – 803

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 22 1.11-2840 E
