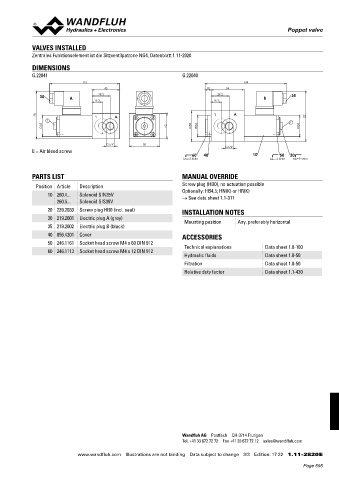

Page 595 - Softbound_Edition_19_en

G.2204
Poppet valve

VALVES INSTALLED
Zentrales Funktionselement ist die Sitzventilpatrone NG4, Datenblatt 1.11-2020.

DIMENSIONS
G.22041 G.22040
115 134
45 10 54
30 A 29.5 29.5 B 35
16.3 16.3

78 82
E E
35 42 50 35 35

G1/4" 50 G1/4"
E = Air bleed screw
60 40 10 50 20
MD= 2.6Nm MD= 2.6Nm MD=9.5Nm

PARTS LIST MANUAL OVERRIDE
Position Article Description Screw plug (HB0), no actuation possible
Optionally: HB4,5; HN(K) or HR(K)
10 260.4... Solenoid SIN35V → See data sheet 1.1-311
260.5... Solenoid SIS35V
20 239.2033 Screw plug HB0 (incl. seal) INSTALLATION NOTES
30 219.2001 Electric plug A (grey) Mounting position Any, preferably horizontal
35 219.2002 Electric plug B (black)
40 056.4201 Cover ACCESSORIES
50 246.1161 Socket head screw M4 x 60 DIN 912
Technical explanations Data sheet 1.0-100
60 246.1113 Socket head screw M4 x 12 DIN 912
Hydraulic fluids Data sheet 1.0-50
Filtration Data sheet 1.0-50
Relative duty factor Data sheet 1.1-430

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 17 22 1.11-2820 E
