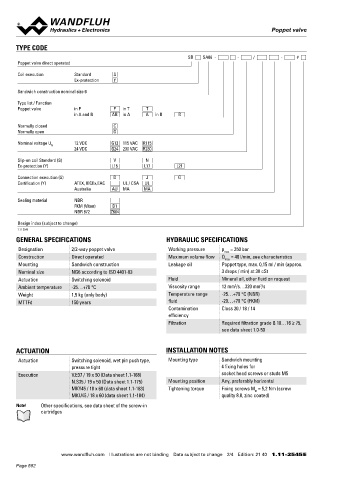

Page 582 - Softbound_Edition_19_en

Solenoid operated poppet valve Solenoid operated poppet valve
Poppet valve

TYPE CODE PERFORMANCE SPECIFICATIONS
SD SA06 - - / - # Attention! The performance data especially the „pressu- Note! Detailed characteristics as well as further hydraulic
Poppet valve direct operated re-flowcharacteristic„ on the data sheets of the specifications can be found on the data sheet of the
screw-in catridges refere to the screw-in cartridges cartridge installed.
Coil execution Standard S only. The additional pressure drop of the sandwich body
Ex-protection Y must be taken into consideration.
Sandwich construction nominal size 6

Type list / Function
Poppet valve in P P in T T
in A and B AB in A A in B B VALVES INSTALLED
The following screw-in cartridges are used in the sandwich body.
Normally closed C
Normally open O Article Description Data sheet no.
SDSPM22-BA Poppet valve, normally closed 1.11-2061
Nominal voltage U N 12 VDC G12 115 VAC R115
24 VDC G24 230 VAC R230 SDSPM22-AB Poppet valve, normally open 1.11-2061
SDYPM22-BA Poppet valve ex-protection, normally closed 1.11-2064
Slip-on coil Standard (S) V N
Ex-protection (Y) L15 L17 L21 SDYPM22-AB Poppet valve ex-protection, normally open 1.11-2064
Connection execution (S) D J G
Certification (Y) ATEX, IECEx,EAC UL / CSA UL
Australia AU MA MA
HYDRAULIC CONNECTION ACCESSORIES
Sealing material NBR
FKM (Viton) D1 Fixing screws Data sheet 1.0-60
NBR 872 Z604 17.8 Threaded subplates Data sheet 2.9-30
T
Design index (subject to change) Multi-station subplates Data sheet 2.9-60
1.11-2545 A B Module type manifold blocks Data sheet 2.9-100
31 21 32.5
GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS Technical explanations Data sheet 1.0-100
P Filtration Data sheet 1.0-50
Designation 2/2-way poppet valve Working pressure p = 350 bar
max 21.5
Construction Direct operated Maximum volume flow Q = 40 l/min, see characteristics 40.5 Relative duty factor Data sheet 1.1-430
max
Mounting Sandwich construction Leakage oil Poppet type, max. 0,15 ml / min (approx.
Nominal size NG6 according to ISO 4401-03 3 drops / min) at 30 cSt
Actuation Switching solenoid Fluid Mineral oil, other fluid on request
2
2
Ambient temperature -25…+70 °C Viscosity range 12 mm /s…320 mm /s
Weight 1,5 kg (only body) Temperature range -25…+70 °C (NBR) PARTS LIST MANUAL OVERRIDE
MTTFd 150 years fluid -20…+70 °C (FKM) Screw plug (HB0), no actuation possible
Contamination Class 20 / 18 / 14 Position Article Description Optionally: HB4,5, HN(K) or HR(K)
efficiency 20 238.5404 Screw plug VSTI M22 x 1,5 → See data sheet 1.1-311
Filtration Required filtration grade ß 10…16 ≥ 75,
see data sheet 1.0-50

ACTUATION INSTALLATION NOTES
Actuation Switching solenoid, wet pin push type, Mounting type Sandwich mounting STANDARDS SURFACE TREATMENT
pressure tight 4 fixing holes for ◆ The sandwich bodies are zinc-nickel coated
Execution V.E37 / 19 x 50 (Data sheet 1.1-168) socket head screws or studs M5 Mounting interface ISO 4401-03
N.S35 / 19 x 50 (Data sheet 1.1-175) Mounting position Any, preferably horizontal Solenoids DIN VDE 0580
MKY45 / 18 x 60 (data sheet 1.1-183) Tightening torque Fixing screws M = 5,2 Nm (screw Connection execution D EN 175301 – 803
D SEALING MATERIAL
MKU45 / 18 x 60 (data sheet 1.1-184) quality 8.8, zinc coated) Protection class EN 60 529
Contamination efficiency ISO 4406 NBR or FKM (Viton) as standard, choice in the type code
Note! Other specifications, see data sheet of the screw-in
cartridges
