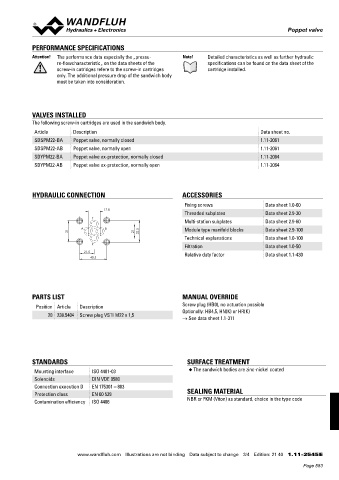

Solenoid operated poppet valve
Poppet valve

PERFORMANCE SPECIFICATIONS
Attention! The performance data especially the „pressu- Note! Detailed characteristics as well as further hydraulic
re-flowcharacteristic„ on the data sheets of the specifications can be found on the data sheet of the
screw-in catridges refere to the screw-in cartridges cartridge installed.
only. The additional pressure drop of the sandwich body
must be taken into consideration.

VALVES INSTALLED
The following screw-in cartridges are used in the sandwich body.
Article Description Data sheet no.
SDSPM22-BA Poppet valve, normally closed 1.11-2061
SDSPM22-AB Poppet valve, normally open 1.11-2061
SDYPM22-BA Poppet valve ex-protection, normally closed 1.11-2064
SDYPM22-AB Poppet valve ex-protection, normally open 1.11-2064

HYDRAULIC CONNECTION ACCESSORIES
Fixing screws Data sheet 1.0-60
17.8
Threaded subplates Data sheet 2.9-30
T
Multi-station subplates Data sheet 2.9-60
A B Module type manifold blocks Data sheet 2.9-100
31 21 32.5
Technical explanations Data sheet 1.0-100
P
Filtration Data sheet 1.0-50
21.5 Relative duty factor Data sheet 1.1-430
40.5

PARTS LIST MANUAL OVERRIDE
Position Article Description Screw plug (HB0), no actuation possible
Optionally: HB4,5, HN(K) or HR(K)
20 238.5404 Screw plug VSTI M22 x 1,5
→ See data sheet 1.1-311

STANDARDS SURFACE TREATMENT

Mounting interface ISO 4401-03 ◆ The sandwich bodies are zinc-nickel coated
Solenoids DIN VDE 0580
Connection execution D EN 175301 – 803
Protection class EN 60 529 SEALING MATERIAL
Contamination efficiency ISO 4406 NBR or FKM (Viton) as standard, choice in the type code

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 40 1.11-2545 E
