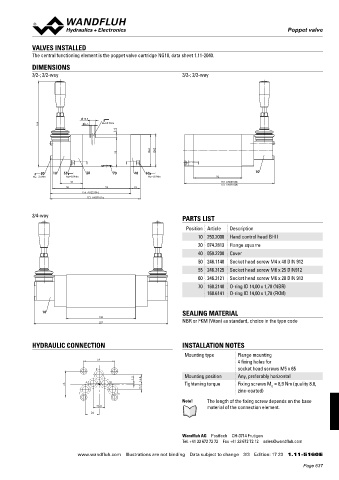

Poppet valve
VALVES INSTALLED
The central functioning element is the poppet valve cartridge NG10, data sheet 1.11-2040.
DIMENSIONS
3/2-; 2/2-way 3/2-; 2/2-way
10.5
164 6.5 MD=8.9Nm
7
60 62
55
50 10 55 20 70 40 60 10
MD= 2.6Nm MD=8.9Nm MD= 8.9Nm 93
43 173 AH22100b
173 AH32100b
58 93 18
155 AH22101a
173 AH32101a
3/4-way
PARTS LIST
Position Article Description
10 253.2000 Hand control head BHII
20 074.2813 Flange squarre
40 059.2200 Cover
50 246.1140 Socket head screw M4 x 40 DIN 912
55 246.3125 Socket head screw M6 x 25 DIN912
60 246.3121 Socket head screw M6 x 20 DIN 912
70 160.2140 O-ring ID 14,00 x 1,78 (NBR)
160.6141 O-ring ID 14,00 x 1,78 (FKM)
10 SEALING MATERIAL
133
257 NBR or FKM (Viton) as standard, choice in the type code
HYDRAULIC CONNECTION INSTALLATION NOTES
Mounting type Flange mounting
54
4 fixing holes for
P socket head screws M5 x 65
Mounting position Any, preferably horizontal
1.5
A B 16.8
46 Tightening torque Fixing screws M = 8,9 Nm (quality 8.8,
9.7
D
zinc-coated)
T To
Note! The length of the fixing screw depends on the base
20.8 material of the connection element.
24
