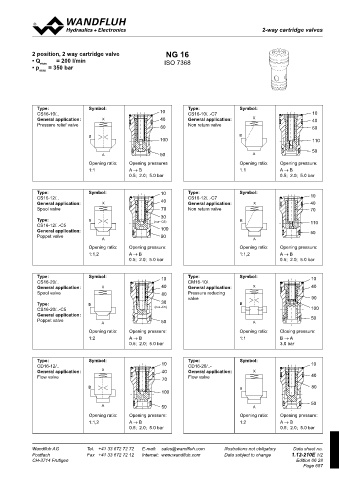

Page 657 - Softbound_Edition_19_en

2-way cartridge valves
2 position, 2 way cartridge valves

2 position, 2 way cartridge valve NG 16
• Q max = 200 l/min ISO 7368
• p max = 350 bar

Type: Symbol: Type: Symbol:
CS16-10/.. CS16-10/..-C7
General application: General application:
Pressure relief valve Non return valve

Opening ratio: Opening pressures Opening ratio: Opening pressure:
1:1 A → B 1.1 A → B
0.5; 2.0; 5.0 bar 0.5; 2.0; 5.0 bar

Type: Symbol: Type: Symbol:
CS16-12/.. CS16-12/..-C7
General application: General application:
Spool valve Non return valve

Type:
CS16-12/..-C5
General application:
Poppet valve

Opening ratio: Opening pressure: Opening ratio: Opening pressure:
1:1,2 A → B 1:1,2 A → B
0.5; 2.0; 5.0 bar 0.5; 2.0; 5.0 bar

Type: Symbol: Type: Symbol:
CS16-20/.. CM16-10/..
General application: General application:
Spool valve Pressure reducing

valve
Type:
CS16-20/..-C5
General application:
Poppet valve

Opening ratio: Opening pressure: Opening ratio: Closing pressure:
1:2 A → B 1:1 B → A
0.5; 2.0; 5.0 bar 3.0 bar

Type: Symbol: Type: Symbol:
CD16-12/.. CD16-20/..-
General application: General application:
Flow valve Flow valve

Opening ratio: Opening pressure: Opening ratio: Opening pressure:
1:1,2 A → B 1:2 A → B
0.5; 2.0; 5.0 bar 0.5; 2.0; 5.0 bar

Wandfluh AG Tel. +41 33 672 72 72 E-mail: [email protected] Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.12-210E 1/2
CH-3714 Frutigen Edition 06 28
