Proportional spool valve
Proportional spool valve

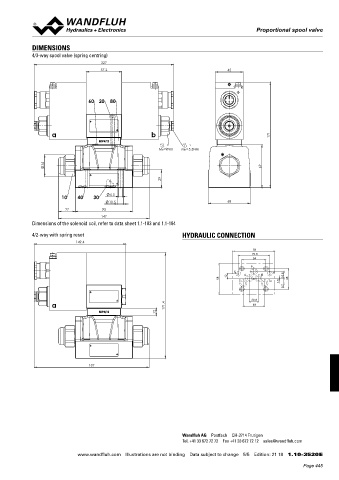

DIMENSIONS
4/3-way spool valve (spring centring)
227
57.2 45
60 20 80
a b 171
MD=9Nm MD=5.5Nm
35
69
29
10 40 30 6.5
10.5 68
27 93
147
Dimensions of the solenoid coil, refer to data sheet 1.1-183 and 1.1-184
4/2-way with spring reset HYDRAULIC CONNECTION
149.4
93
70.8
54
P
X A B Y
68 12 T To 1.5 16.8 46
9.7
20.8
a 171.4 48
12
187
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]
www.wandfluh.com Illustrations are not binding Data subject to change 5/5 Edition: 21 18 1.10-3520 E
