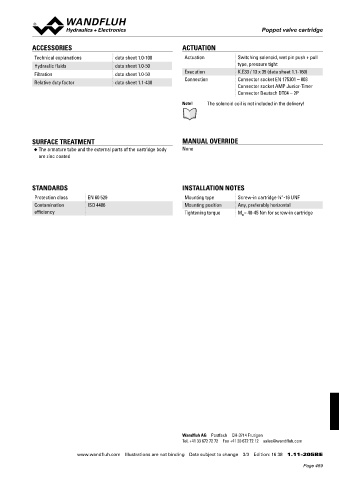

SDEPU08
Poppet valve cartridge
ACCESSORIES ACTUATION
Technical explanations data sheet 1.0-100 Actuation Switching solenoid, wet pin push + pull
Hydraulic fluids data sheet 1.0-50 type, pressure tight
Filtration data sheet 1.0-50 Execution K.E33 / 13 x 39 (data sheet 1.1-160)
Connection Connector socket EN 175301 – 803
Relative duty factor data sheet 1.1-430
Connector socket AMP Junior-Timer
Connector Deutsch DT04 – 2P
Note! The solenoid coil is not included in the delivery!
SURFACE TREATMENT MANUAL OVERRIDE
◆ The armature tube and the external parts of the cartridge body None
are zinc coated
STANDARDS INSTALLATION NOTES
Protection class EN 60 529 Mounting type Screw-in cartridge ⁄4 “-16 UNF
3
Contamination ISO 4406 Mounting position Any, preferably horizontal
efficiency Tightening torque M = 40-45 Nm for screw-in cartridge
D
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]
www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 16 38 1.11-205B E
