SDEPU08

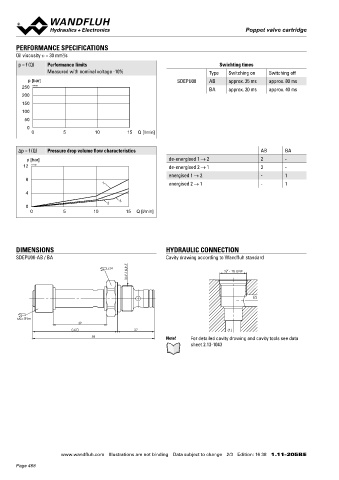

Poppet valve cartridge SDEPU08

PERFORMANCE SPECIFICATIONS ACCESSORIES ACTUATION
Oil viscosity u = 30 mm /s Technical explanations data sheet 1.0-100 Actuation Switching solenoid, wet pin push + pull
2
p = f (Q) Performance limits Swichting times Hydraulic fluids data sheet 1.0-50 type, pressure tight
Measured with nominal voltage -10% Type Switching on Switching off Filtration data sheet 1.0-50 Execution K.E33 / 13 x 39 (data sheet 1.1-160)
p [bar] SDEPU08 AB approx. 35 ms approx. 80 ms Relative duty factor data sheet 1.1-430 Connection Connector socket EN 175301 – 803
250 K4137 Connector socket AMP Junior-Timer
BA approx. 20 ms approx. 40 ms
200 Connector Deutsch DT04 – 2P
150 Note! The solenoid coil is not included in the delivery!
100
50
0
0 5 10 15 Q [l/min]
SURFACE TREATMENT MANUAL OVERRIDE
∆p = f (Q) Pressure drop volume flow characteristics AB BA ◆ The armature tube and the external parts of the cartridge body None
are zinc coated
p [bar] de-energised 1 → 2 2 -
12 K4138 de-energised 2 → 1 3 -
energised 1 → 2 - 1
8
1 energised 2 → 1 - 1
STANDARDS INSTALLATION NOTES
4
Protection class EN 60 529 Mounting type Screw-in cartridge ⁄4 “-16 UNF
3
3
2
0 Contamination ISO 4406 Mounting position Any, preferably horizontal
0 5 10 15 Q [l/min] efficiency Tightening torque M = 40-45 Nm for screw-in cartridge
D

DIMENSIONS HYDRAULIC CONNECTION
SDEPU08-AB / BA Cavity drawing according to Wandfluh standard
3/4"-16UNF ¾“ - 16 UNF
s24

(2)

MD= 5Nm
39
62 27 (1)
89 Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1043

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 2/3 Edition: 16 38 1.11-205B E www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 16 38 1.11-205B E
