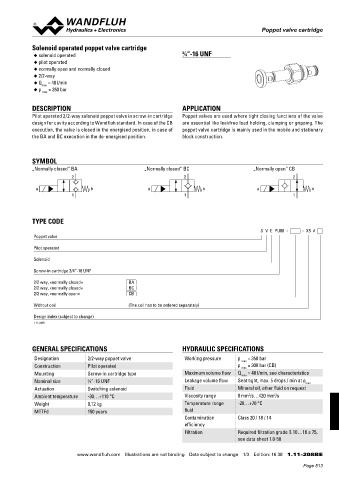

SVEPU08
Poppet valve cartridge

Solenoid operated poppet valve cartridge
◆ solenoid operated 3 ⁄4 “-16 UNF
◆ pilot operated
◆ normally open and normally closed
◆ 2/2-way
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Pilot operated 2/2-way solenoid poppet valve in screw-in cartridge Poppet valves are used where tight closing functions of the valve
design for cavity according to Wandfluh standard. In case of the CB are essential like leakfree load holding, clamping or gripping. The
execution, the valve is closed in the energised position, in case of poppet valve cartridge is mainly used in the mobile and stationary

the BA and BC execution in the de-energised position. block construction.

SYMBOL

„Normally closed“ BA „Normally closed“ BC „Normally open“ CB
2 2 2
a b a b a b
1 1 1

TYPE CODE
S V E PU08 - - X5 #
Poppet valve

Pilot operated
Solenoid

Screw-in cartridge 3/4“-16 UNF
2/2 way, «normally closed» BA
2/2 way, «normally closed» BC
2/2 way, «normally open» CB
Without coil (The coil has to be ordered separately)

Design index (subject to change)
1.11-208B

GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS
Designation 2/2-way poppet valve Working pressure p = 350 bar
max
Construction Pilot operated p = 300 bar (CB)
max
Mounting Screw-in cartridge type Maximum volume flow Q max = 40 l/min, see characteristics
Nominal size 3 ⁄4 “-16 UNF Leakage volume flow Seat tight, max. 5 drops / min at p max
Actuation Switching solenoid Fluid Mineral oil, other fluid on request
Ambient temperature -30…+110 °C Viscosity range 8 mm /s…420 mm /s
2
2
Weight 0,12 kg Temperature range -20…+70 °C
MTTFd 150 years fluid
Contamination Class 20 / 18 / 14
efficiency
Filtration Required filtration grade ß 10…16 ≥ 75,
see data sheet 1.0-50

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 16 38 1.11-208B E
