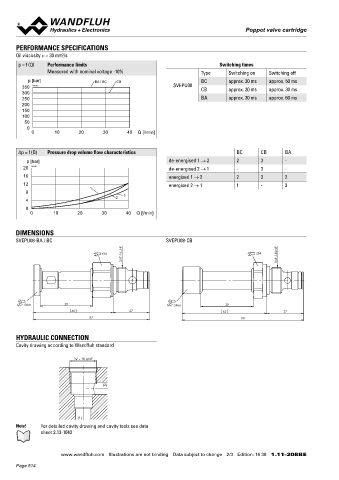

Poppet valve cartridge SVEPU08

PERFORMANCE SPECIFICATIONS ACCESSORIES ACTUATION
Oil viscosity u = 30 mm /s Technical explanations data sheet 1.0-100 Actuation Switching solenoid, wet pin push + pull
2
p = f (Q) Performance limits Switching times Hydraulic fluids data sheet 1.0-50 type, pressure tight
Measured with nominal voltage -10% Type Switching on Switching off Filtration data sheet 1.0-50 Execution K.E33 / 13 x 39 (data sheet 1.1-160)
p [bar] BA / BC CB BC approx. 30 ms approx. 50 ms Relative duty factor data sheet 1.1-430 Connection Connector socket EN 175301 – 803
350 K4135 SVEPU08 CB approx. 20 ms approx. 30 ms Connector socket AMP Junior-Timer
300 Connector Deutsch DT04 – 2P
250 BA approx. 30 ms approx. 60 ms Note! The solenoid coil is not included in the delivery!
200
150
100
50
0
0 10 20 30 40 Q [l/min] SURFACE TREATMENT MANUAL OVERRIDE

◆ The armature tube and the external parts of the cartridge body None

∆p = f (Q) Pressure drop volume flow characteristics BC CB BA are zinc coated
p [bar] de-energised 1 → 2 2 3 -
20 K4136 de-energised 2 → 1 - 3 -
16 energised 1 → 2 2 3 2 STANDARDS INSTALLATION NOTES
12 energised 2 → 1 1 - 3 Protection class EN 60 529 Mounting type Screw-in cartridge ⁄4 “-16 UNF
3
1
8 Contamination ISO 4406 Mounting position Any, preferably horizontal
2 3 efficiency
4 Tightening torque M = 40-45 Nm for screw-in cartridge
D
0
0 10 20 30 40 Q [l/min]

DIMENSIONS
SVEPU08-BA / BC SVEPU08-CB
3/4"-16UNF 3/4"-16UNF
s24 s24

MD= 5Nm 39 MD= 5Nm 39
60 27 63 27
87 90

HYDRAULIC CONNECTION
Cavity drawing according to Wandfluh standard

¾“ - 16 UNF

(2)

(1)

Note! For detailed cavity drawing and cavity tools see data
sheet 2.13-1043
