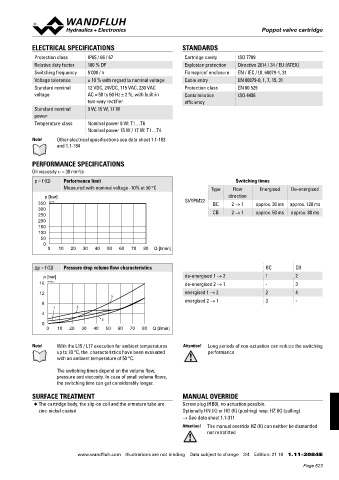

Poppet valve
Poppet valve cartridge
ELECTRICAL SPECIFICATIONS STANDARDS
Protection class IP65 / 66 / 67 Cartridge cavity ISO 7789
Relative duty factor 100 % DF Explosion protection Directive 2014 / 34 / EU (ATEX)
Switching frequency 5'000 / h Flameproof enclosure EN / IEC / UL 60079-1, 31
Voltage tolerance ± 10 % with regard to nominal voltage Cable entry EN 60079-0, 1, 7, 15, 31
Standard nominal 12 VDC, 24VDC, 115 VAC, 230 VAC Protection class EN 60 529
voltage AC = 50 to 60 Hz ± 2 %, with built-in Contamination ISO 4406
two-way rectifier efficiency
Standard nominal 9 W, 15 W, 17 W
power
Temperature class Nominal power 9 W: T1…T6
Nominal power 15 W / 17 W: T1…T4
Note! Other electrical specifications see data sheet 1.1-183
and 1.1-184
PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limit Switching times
Measured with nominal voltage -10% at 50 °C Type Flow Energised De-energised
p [bar] direction
350 K0769 SVYPM22 BC 2 → 1 approx. 30 ms approx. 120 ms
300
250 CB 2 → 1 approx. 50 ms approx. 80 ms
200
150
100
50
0
0 10 20 30 40 50 60 70 80 Q [l/min]
∆p = f (Q) Pressure drop volume flow characteristics BC CB
p [bar] de-energised 1 → 2 1 2
16 K0770_1 de-energised 2 → 1 - 3
12 energised 1 → 2 2 4
3
8 energised 2 → 1 3 -
1 4
4
2
0
0 10 20 30 40 50 60 70 80 Q [l/min]
Note! With the L15 / L17 execution for ambient temperatures Attention! Long periods of non-actuation can reduce the switching
up to 70 °C, the characteristics have been evaluated performance
with an ambient temperature of 50 °C.
The switching times depend on the volume flow,
pressure and viscosity. In case of small volume flows,
the switching time can get considerably longer.
SURFACE TREATMENT MANUAL OVERRIDE
◆ The cartridge body, the slip-on coil and the armature tube are Screw plug (HB0), no actuation possible.
zinc-nickel coated Optionally HN (K) or HG (K) (pushing) resp. HZ (K) (pulling)
→ See data sheet 1.1-311
Attention! The manual override HZ (K) can neither be dismantled
nor retrofitted
www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 18 1.11-2084 E
