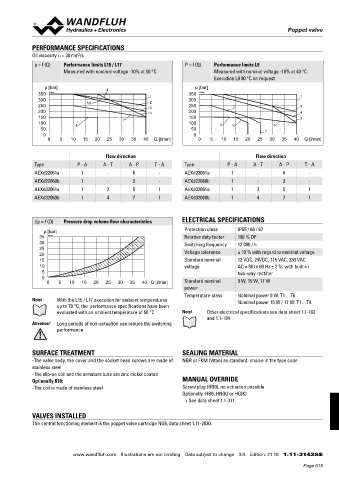

Poppet valve
Poppet valve

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limits L15 / L17 P = f (Q) Performance limits L9
Measured with nominal voltage -10% at 50 °C Measured with nominal voltage -10% at 40 °C
Execution L9 90 °C on request
p [bar] 4 p [bar]
350 K0989 1 350 K0990 1
300 2 300
250 3,6 6 250 7 2
200 3 200 4
150 7 150 3
100 5 100 6 5 6
50 50 7
0 0
0 5 10 15 20 25 30 35 40 Q [l/min] 0 5 10 15 20 25 30 35 40 Q [l/min]

Flow direction Flow direction
Type P - A A - T A - P T - A Type P - A A - T A - P T - A
AEXd22061a 1 - 6 - AEXd22061a 1 - 6 -
AEXd22060b 1 - 3 - AEXd22060b 1 - 3 -
AEXd32061a 1 2 5 1 AEXd32061a 1 2 5 1
AEXd32060b 1 4 7 1 AEXd32060b 1 4 7 1

Δp = f (Q) Pressure drop volume flow characteristics ELECTRICAL SPECIFICATIONS
Protection class IP65 / 66 / 67
p [bar]
35 K0078 Relative duty factor 100 % DF
30 Switching frequency 12'000 / h
25
20 Voltage tolerance ± 10 % with regard to nominal voltage
15 Standard nominal 12 VDC, 24VDC, 115 VAC, 230 VAC
10 voltage AC = 50 to 60 Hz ± 2 %, with built-in
5 two-way rectifier
0
0 5 10 15 20 25 30 35 40 Q [l/min] Standard nominal 9 W, 15 W, 17 W
power

Temperature class Nominal power 9 W: T1…T6
Note! With the L15 / L17 execution for ambient temperatures Nominal power 15 W / 17 W: T1…T4
up to 70 °C, the performance specifications have been
evaluated with an ambient temperature of 50 °C Note! Other electrical specifications see data sheet 1.1-183
and 1.1-184
Attention! Long periods of non-actuation can reduce the switching
performance

SURFACE TREATMENT SEALING MATERIAL
-The valve body, the cover and the socket head screws are made of NBR or FKM (Viton) as standard, choice in the type code
stainless steel
-The slip-on coil and the armature tube are zinc nickel coated
Optionally K10: MANUAL OVERRIDE
-The coil is made of stainless steel Screw plug (HB0), no actuation possible
Optionally: HB6, HN(K) or HG(K)
→ See data sheet 1.1-311

VALVES INSTALLED
The central functioning element is the poppet valve cartridge NG6, data sheet 1.11-2030.

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 18 1.11-3143S E
