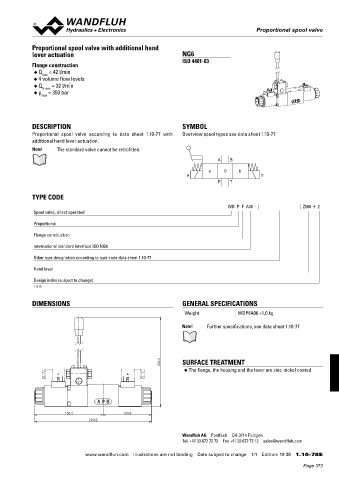

Proportional spool valve
Proportional spool valve

Proportional spool valve with additional hand
lever actuation NG6
ISO 4401-03
Flange construction
◆ Q = 42 l/min
max
◆ 4 volume flow levels
◆ Q N max = 32 l/min
◆ p = 350 bar
max

DESCRIPTION SYMBOL
Proportional spool valve according to data sheet 1.10-77 with Overview spool types see data sheet 1.10-77

additional hand lever actuation.

Note! The standard valve cannot be retrofitted.
A B
a 0 b
a b
P T

TYPE CODE

WD P F A06 - Z568 # 2
Spool valve, direct operated
Proportional

Flange construction
International standard interface ISO NG6

Other type designation according to type code data sheet 1.10-77
Hand lever

Design index (subject to change)
1.10-78

DIMENSIONS GENERAL SPECIFICATIONS
Weight WDPFA06 +1,0 kg

Note! Further specifications, see data sheet 1.10-77

256.5 SURFACE TREATMENT

◆ The flange, the housing and the lever are zinc-nickel coated
A B

150.2 105.8
256

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 1/1 Edition: 19 38 1.10-78 E
