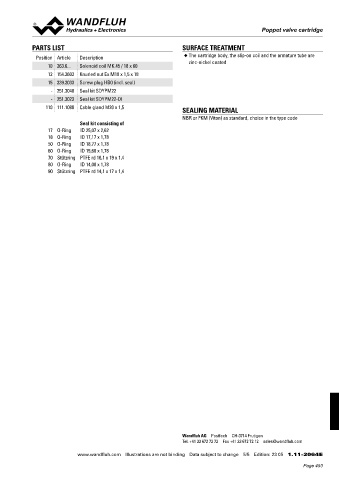

Poppet valve
Poppet valve cartridge

PARTS LIST SURFACE TREATMENT
Position Article Description ◆ The cartridge body, the slip-on coil and the armature tube are
zinc-nickel coated
10 263.6... Solenoid coil MK.45 / 18 x 60
12 154.2603 Knurled nut Ex M18 x 1,5 x 18
15 239.2033 Screw plug HB0 (incl. seal)
- 251.3040 Seal kit SDYPM22
- 251.3023 Seal kit SDYPM22-DI
110 111.1080 Cable gland M20 x 1,5
SEALING MATERIAL
NBR or FKM (Viton) as standard, choice in the type code
Seal kit consisting of
17 O-Ring ID 25,07 x 2,62
18 O-Ring ID 17,17 x 1,78
50 O-Ring ID 18,77 x 1,78
60 O-Ring ID 15,60 x 1,78
70 Stützring PTFE rd 16,1 x 19 x 1,4
80 O-Ring ID 14,00 x 1,78
90 Stützring PTFE rd 14,1 x 17 x 1,4

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 5/5 Edition: 23 05 1.11-2064 E
