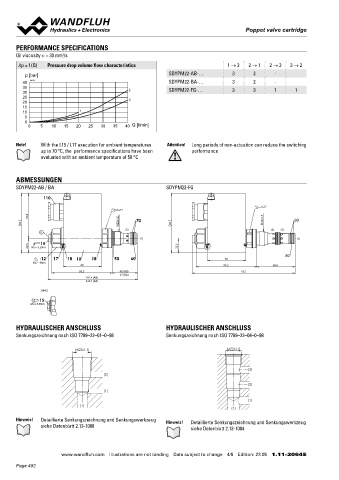

P. 492
Poppet valve
Poppet valve cartridge Poppet valve
PERFORMANCE SPECIFICATIONS PARTS LIST SURFACE TREATMENT
Oil viscosity u = 30 mm /s Position Article Description ◆ The cartridge body, the slip-on coil and the armature tube are
2
∆p = f (Q) Pressure drop volume flow characteristics 1 → 2 2 → 1 2 → 3 3 → 2 10 263.6... Solenoid coil MK.45 / 18 x 60 zinc-nickel coated
p [bar] SDYPM22-AB-… 3 2 - 12 154.2603 Knurled nut Ex M18 x 1,5 x 18
40 K4163 SDYPM22-BA-… 3 2 - 15 239.2033 Screw plug HB0 (incl. seal)
35 2 SDYPM22-FG-… 3 3 1 1 - 251.3040 Seal kit SDYPM22
30
25 3 - 251.3023 Seal kit SDYPM22-DI
20
15 110 111.1080 Cable gland M20 x 1,5
10 1 SEALING MATERIAL
5 NBR or FKM (Viton) as standard, choice in the type code
0 Seal kit consisting of
0 5 10 15 20 25 30 35 40 Q [l/min]
17 O-Ring ID 25,07 x 2,62
18 O-Ring ID 17,17 x 1,78
Note! With the L15 / L17 execution for ambient temperatures Attention! Long periods of non-actuation can reduce the switching 50 O-Ring ID 18,77 x 1,78
up to 70 °C, the performance specifications have been performance 60 O-Ring ID 15,60 x 1,78
evaluated with an ambient temperature of 50 °C 70 Stützring PTFE rd 16,1 x 19 x 1,4
80 O-Ring ID 14,00 x 1,78
90 Stützring PTFE rd 14,1 x 17 x 1,4
ABMESSUNGEN
SDYPM22-AB / BA SDYPM22-FG
110
s27
s27
70.8 70 90
94 M22x1.5 94 M22x1.5
(2) (3) (2)
E
(1) (1)
15
22.5 M D= 9.5Nm 22.5
80
12 17 18 10 18 50 60 60
M D= 9Nm
60 95.2 60.6
95.2 40 (AB) 162
37 (BA)
141.4 (AB)
138.4 (BA)
HB4,5
15
M D=5.5Nm
HYDRAULISCHER ANSCHLUSS HYDRAULISCHER ANSCHLUSS
Senkungszeichnung nach ISO 7789–22–01–0–98 Senkungszeichnung nach ISO 7789–22–04–0–98
M22x1.5 M22x1.5
(3)
(2)
(2)
(1)
(1)
(1)
(1)
Hinweis! Detaillierte Senkungszeichnung und Senkungswerkzeug Hinweis! Detaillierte Senkungszeichnung und Senkungswerkzeug
siehe Datenblatt 2.13-1008
siehe Datenblatt 2.13-1004
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]
www.wandfluh.com Illustrations are not binding Data subject to change 4/5 Edition: 23 05 1.11-2064 E www.wandfluh.com Illustrations are not binding Data subject to change 5/5 Edition: 23 05 1.11-2064 E
