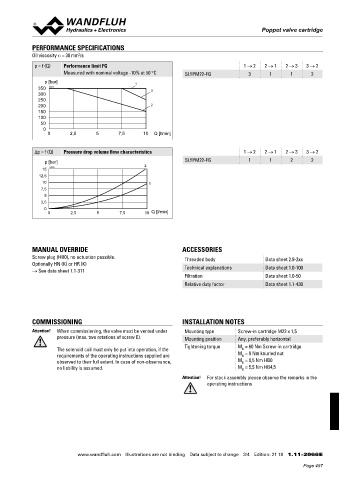

Poppet valve
                                                                                             Poppet valve cartridge


            PERFORMANCE SPECIFICATIONS
            Oil viscosity u = 30 mm /s
                             2
             p = f (Q)  Performance limit FG                                           1 → 2  2 → 1  2 → 3   3 → 2
                       Measured with nominal voltage -10% at 50 °C  SLYPM22-FG          3       1      1      2
                 p [bar]                        1
              350  K4235                              3
              300
              250
              200                                     2
              150
              100
               50
                0
                  0       2,5      5       7,5     10  Q [l/min]

             ∆p = f (Q)  Pressure drop volume flow characteristics                     1 → 2  2 → 1  2 → 3   3 → 2

                 p [bar]                                          SLYPM22-FG            1       1      2      2
                15  K4236                           2
               12,5
                10                                   1
               7,5
                 5
               2,5
                 0
                  0       2,5      5       7,5      10  Q [l/min]





            MANUAL OVERRIDE                                      ACCESSORIES
            Screw plug (HB0), no actuation possible.              Threaded body               Data sheet 2.9-2xx
            Optionally HN (K) or HR (K)
            → See data sheet 1.1-311                              Technical explanations      Data sheet 1.0-100
                                                                  Filtration                  Data sheet 1.0-50
                                                                  Relative duty factor        Data sheet 1.1-430






            COMMISSIONING                                        INSTALLATION NOTES
            Attention!    When commissioning, the valve must be vented under   Mounting type  Screw-in cartridge M22 x 1,5
                     pressure (max. two rotations of screw E).    Mounting position  Any, preferably horizontal
                                                                  Tightening torque  M  = 60 Nm Screw-in cartridge
                     The solenoid coil must only be put into operation, if the        D
                     requirements of the operating instructions supplied are         M  = 9 Nm knurled nut
                                                                                      D
                     observed to their full extent. In case of non-observance,       M  = 9,5 Nm HB0
                                                                                      D
                     no liability is assumed.                                        M  = 5,5 Nm HB4,5
                                                                                      D
                                                                 Attention!  For stack assembly please observe the remarks in the
                                                                          operating instructions













                            www.wandfluh.com  Illustrations are not binding  Data subject to change  3/4  Edition: 21 18  1.11-2066 E
