Poppet valve
Poppet valve cartridge Poppet valve

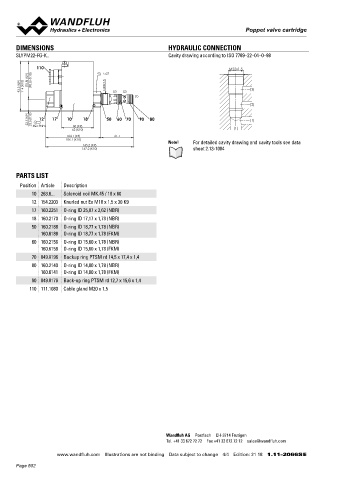

DIMENSIONS HYDRAULIC CONNECTION Solenoid operated poppet valve cartridge
SLYPM22-FG-K.. Cavity drawing according to ISO 7789–22–04–0–98 ◆ solenoid operated M33 x 2
◆ pilot operated ISO 7789
110 s27 M22x1.5 ◆ normally open and normally closed
2/2-way
◆
93.3 (K9) 114 (K10) (70.8) (K9) (90.5) (K10) M22x1.5 (3) (2) (3) ◆ Q = 150 l/min
max
p = 350 bar
◆
(1) max
(2)
22.5 (K9) 23.5 (K10) 12 17 10 18 50 60 70 90 80 (1) DESCRIPTION APPLICATION
MD=9Nm
60 (K9)
62 (K10) (1) Pilot operated 2/2-way solenoid poppet valve in screw-in cartridge Wandfluh solenoid operated poppet valve cartridges are used

104.1 (K9) 61.1 construction for cavity according to ISO 7789. The AB and CB where tight closing functions are essential like leakage-free load
106.1 (K10) Note! For detailed cavity drawing and cavity tools see data
165.2 (K9) execution is closed in the energised position, the BA and BC execu- holding, clamping or gripping. For machining the cartridge cavity in
167.2 (K10) sheet 2.13-1004 tion in the de-energised position. In this, the main spool closes steel and aluminum blocks, cavity tools are available (hire or

practically leakage-free by means of the applied pressure. purchase). Please refer to the data sheets in register 2.13.

PARTS LIST
Position Article Description
10 263.6... Solenoid coil MK.45 / 18 x 60 SYMBOL
12 154.2203 Knurled nut Ex M18 x 1,5 x 30 K9 „Normally open“ AB „Normally closed“ BA „Normally closed“ BC „Normally open“ CB
2 2 2 2
17 160.2251 O-ring ID 25,07 x 2,62 (NBR)
18 160.2170 O-ring ID 17,17 x 1,78 (NBR) a b a b a b a b
50 160.2188 O-ring ID 18,77 x 1,78 (NBR) 1 1 1 1
160.6188 O-ring ID 18,77 x 1,78 (FKM)
60 160.2156 O-ring ID 15,60 x 1,78 (NBR)
160.6156 O-ring ID 15,60 x 1,78 (FKM)
70 049.8196 Backup ring PTSM rd 14,5 x 17,4 x 1,4 TYPE CODE
80 160.2140 O-ring ID 14,00 x 1,78 (NBR)
160.6141 O-ring ID 14,00 x 1,78 (FKM) S V S PM33 - - / - #
Poppet valve
90 049.8176 Back-up ring PTSM rd 12,7 x 15,6 x 1,4
110 111.1080 Cable gland M20 x 1,5 Pilot operated

Solenoid, Super
Screw-in cartridge M33 x 2

Designation of symbols acc. to table
Nominal voltage U N 12 VDC G12 115 VAC R115
24 VDC G24 230 VAC R230
without coil X5
Slip-on coil Metal housing, round W (only G12 and G24)
Metal housing, square M

Connection execution
Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior-Timer J
Connector Deutsch DT04-2P G
Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
1.11-2076
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 4/4 Edition: 21 18 1.11-2066S E www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 21 26 1.11-2076 E
