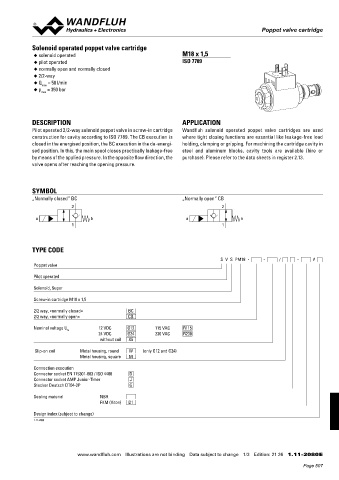

Poppet valve
Poppet valve cartridge

Solenoid operated poppet valve cartridge
◆ solenoid operated M18 x 1,5
◆ pilot operated ISO 7789
◆ normally open and normally closed
◆ 2/2-way
◆ Q = 50 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Pilot operated 2/2-way solenoid poppet valve in screw-in cartridge Wandfluh solenoid operated poppet valve cartridges are used
construction for cavity according to ISO 7789. The CB execution is where tight closing functions are essential like leakage-free load
closed in the energised position, the BC execution in the de-energi- holding, clamping or gripping. For machining the cartridge cavity in
sed position. In this, the main spool closes practically leakage-free steel and aluminum blocks, cavity tools are available (hire or
by means of the applied pressure. In the opposite flow direction, the purchase). Please refer to the data sheets in register 2.13.

valve opens after reaching the opening pressure.

SYMBOL
„Normally closed“ BC „Normally open“ CB
2 2
a b a b
1 1

TYPE CODE
S V S PM18 - - / - #
Poppet valve
Pilot operated
Solenoid, Super

Screw-in cartridge M18 x 1,5

2/2 way, «normally closed» BC
2/2 way, «normally open» CB
Nominal voltage U N 12 VDC G12 115 VAC R115
24 VDC G24 230 VAC R230
without coil X5
Slip-on coil Metal housing, round W (only G12 and G24)
Metal housing, square M
Connection execution
Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior-Timer J
Stecker Deutsch DT04-2P G
Sealing material NBR
FKM (Viton) D1
Design index (subject to change)
1.11-2080

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 21 26 1.11-2080 E
