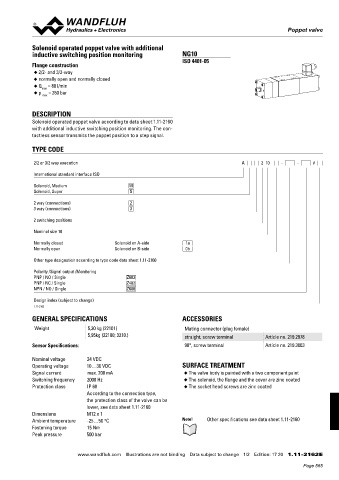

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve with additional
inductive switching position monitoring NG10
ISO 4401-05
Flange construction
◆ 2/2- and 3/2-way
◆ normally open and normally closed
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION
Solenoid operated poppet valve according to data sheet 1.11-2160
with additional inductive switching position monitoring. The con-

tactless sensor transmits the poppet position to a step signal.

TYPE CODE
2/2 or 3/2 way execution A 2 10 - - #

International standard interface ISO
Solenoid, Medium M
Solenoid, Super S

2 way (connections) 2
3 way (connections) 3

2 switching positions
Nominal size 10

Normally closed Solenoid on A-side 1a
Normally open Solenoid on B-side 0b
Other type designation according to type code data sheet 1.11-2160

Polarity /Signal output /Monitoring
PNP / NO / Single Z603
PNP / NC / Single Z482
NPN / NO / Single Z680
Design index (subject to change)
1.11-2162
GENERAL SPECIFICATIONS ACCESSORIES
Weight 5,30 kg (22101) Mating connector (plug female)
5,95kg (22100; 3210.) straight, screw terminal Article no. 219.2978
Sensor Specifications: 90°, screw terminal Article no. 219.3003

Nominal voltage 24 VDC
Operating voltage 10…30 VDC SURFACE TREATMENT
Signal current max. 200 mA ◆ The valve body is painted with a two component paint
Switching frequency 2000 Hz ◆ The solenoid, the flange and the cover are zinc coated
Protection class IP 68 ◆ The socket head screws are zinc coated
According to the connection type,
the protection class of the valve can be
lower, see data sheet 1.11-2160
Dimensions M12 x 1
Ambient temperature -25…50 °C Note! Other specifications see data sheet 1.11-2160
Fastening torque 15 Nm
Peak pressure 500 bar

www.wandfluh.com Illustrations are not binding Data subject to change 1/2 Edition: 17 20 1.11-2162 E
