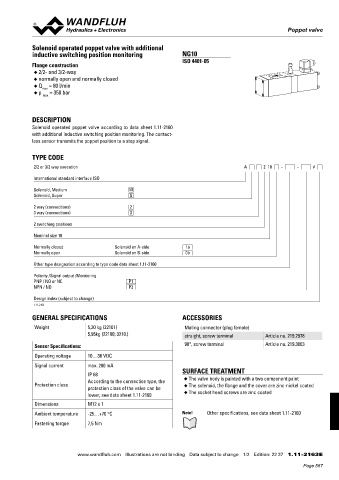

Solenoid operated poppet valve
Poppet valve

Solenoid operated poppet valve with additional
inductive switching position monitoring NG10
ISO 4401-05
Flange construction
◆ 2/2- and 3/2-way
◆ normally open and normally closed
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION
Solenoid operated poppet valve according to data sheet 1.11-2160
with additional inductive switching position monitoring. The contact-

less sensor transmits the poppet position to a step signal.
TYPE CODE
2/2 or 3/2 way execution A 2 10 - - #
International standard interface ISO

Solenoid, Medium M
Solenoid, Super S

2 way (connections) 2
3 way (connections) 3
2 switching positions

Nominal size 10

Normally closed Solenoid on A-side 1a
Normally open Solenoid on B-side 0b
Other type designation according to type code data sheet 1.11-2160

Polarity /Signal output /Monitoring
PNP / NO or NC P1
NPN / NO P2

Design index (subject to change)
1.11-2162

GENERAL SPECIFICATIONS ACCESSORIES
Weight 5,30 kg (22101) Mating connector (plug female)
5,95kg (22100; 3210.) straight, screw terminal Article no. 219.2978

Sensor Specifications: 90°, screw terminal Article no. 219.3003
Operating voltage 10…36 VDC
Signal current max. 200 mA
IP 68 SURFACE TREATMENT
According to the connection type, the ◆ The valve body is painted with a two component paint
Protection class ◆ The solenoid, the flange and the cover are zinc-nickel coated
protection class of the valve can be
lower, see data sheet 1.11-2160 ◆ The socket head screws are zinc coated
Dimensions M12 x 1
Ambient temperature -25…+70 °C Note! Other specifications, see data sheet 1.11-2160
Fastening torque 7,5 Nm

www.wandfluh.com Illustrations are not binding Data subject to change 1/2 Edition: 22 37 1.11-2163 E
