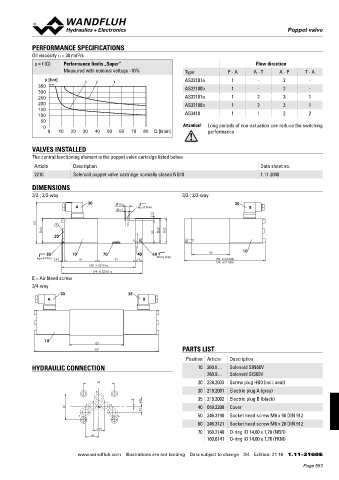

Page 563 - Softbound_Edition_19_en

Poppet valve
Poppet valve

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limits „Super” Flow direction
Measured with nominal voltage -10% Type P - A A - T A - P T - A
p [bar] 3 2 1 AS22101a 1 - 2 -
350 K0156 AS22100b 1 - 2 -
300
250 AS32101a 1 2 3 1
200 AS32100b 1 2 3 1
150
100 AS3410 1 1 2 2
50
0 Attention! Long periods of non-actuation can reduce the switching
0 10 20 30 40 50 60 70 80 Q [l/min] performance

VALVES INSTALLED
The central functioning element is the poppet valve cartridge listed below
Article Description Data sheet no.
2210 Solenoid poppet valve cartridge normally closed NG10 1.11-2040
DIMENSIONS
3/2-; 2/2-way 3/2-; 2/2-way
30 10.5 35
A MD=8.9Nm B
6.5
7
101 E
60 60 62
20
55
10
50 10 70 40 60 93
MD= 8.9Nm 4 81 93 18 MD= 8.9Nm 198 A.22100b
198 A32100b
180 A.22101a

198 A.32101a
E = Air bleed screw
3/4-way
30 35
A B

10
133
PARTS LIST
307

Position Article Description
HYDRAULIC CONNECTION 10 260.8… Solenoid SIN60V
260.9… Solenoid SIS60V
54 20 239.2033 Screw plug HB0 (incl. seal)
30 219.2001 Electric plug A (grey)
P

35 219.2002 Electric plug B (black)
1.5
A B 16.8
46 40 059.2200 Cover
9.7
T To 50 246.3190 Socket head screw M6 x 90 DIN 912
60 246.3121 Socket head screw M6 x 20 DIN 912
20.8
70 160.2140 O-ring ID 14,00 x 1,78 (NBR)
24
160.6141 O-ring ID 14,00 x 1,78 (FKM)
www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 16 1.11-2160 E
