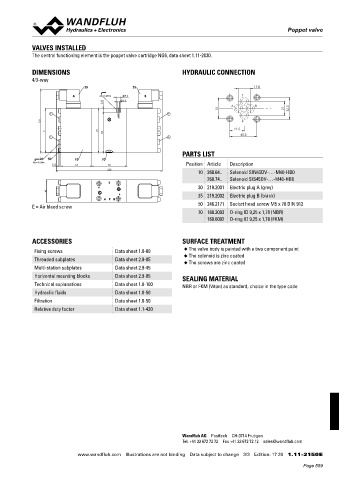

Page 559 - Softbound_Edition_19_en

Poppet valve
Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge NG6, data sheet 1.11-2030.

DIMENSIONS HYDRAULIC CONNECTION
4/3-way
30 35 17.8
A MD=5.2Nm 9.5 B T
8 5.5
A B
31 21 32.5
E E
131 P
21.5
91 92
84 40.5
E E

PARTS LIST
20 50 10 70
MD=9.5Nm Position Article Description
4 64 72
220
10 260.64.. Solenoid SIN45DV-…-M40-HB0
260.74.. Solenoid SIS45DV-…-M40-HB0
30 219.2001 Electric plug A (grey)
46
35 219.2002 Electric plug B (black)
50 246.2171 Socket head screw M5 x 70 DIN 912
E = Air bleed screw
70 160.2093 O-ring ID 9,25 x 1,78 (NBR)
160.6092 O-ring ID 9,25 x 1,78 (FKM)

ACCESSORIES SURFACE TREATMENT
Fixing screws Data sheet 1.0-60 ◆ The valve body is painted with a two component paint
◆ The solenoid is zinc coated
Threaded subplates Data sheet 2.9-05
◆ The screws are zinc coated
Multi-station subplates Data sheet 2.9-45
Horizontal mounting blocks Data sheet 2.9-85 SEALING MATERIAL
Technical explanations Data sheet 1.0-100 NBR or FKM (Viton) as standard, choice in the type code
Hydraulic fluids Data sheet 1.0-50
Filtration Data sheet 1.0-50
Relative duty factor Data sheet 1.1-430

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 17 20 1.11-2150 E
