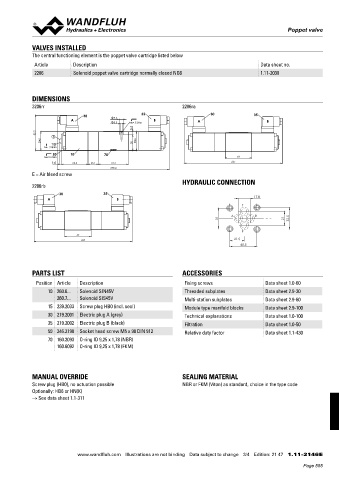

Poppet valve
Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge listed below

Article Description Data sheet no.
2206 Solenoid poppet valve cartridge normally closed NG6 1.11-2030

DIMENSIONS
3206rr 2206ra
35 30
30 35
A 9.5 B A B
5.5 MD= 5.2Nm
8
85.3
E
45 46
15 38
MD= 9.5Nm
50 10 70
MD= 5.2Nm 64
4 64.2 25.1 72.3 237
270.4
E = Air bleed screw
HYDRAULIC CONNECTION
2206rb

30 35
A B 17.8
T

A B
31 21 32.5
P
64
237 21.5
40.5

PARTS LIST ACCESSORIES
Position Article Description Fixing screws Data sheet 1.0-60
10 260.6... Solenoid SIN45V Threaded subplates Data sheet 2.9-30
260.7... Solenoid SIS45V Multi-station subplates Data sheet 2.9-60
15 239.2033 Screw plug HB0 (incl. seal) Module type manifold blocks Data sheet 2.9-100
30 219.2001 Electric plug A (grey) Technical explanations Data sheet 1.0-100
35 219.2002 Electric plug B (black) Filtration Data sheet 1.0-50
50 246.2190 Socket head screw M5 x 90 DIN 912 Relative duty factor Data sheet 1.1-430
70 160.2093 O-ring ID 9,25 x 1,78 (NBR)
160.6092 O-ring ID 9,25 x 1,78 (FKM)

MANUAL OVERRIDE SEALING MATERIAL
Screw plug (HB0), no actuation possible NBR or FKM (Viton) as standard, choice in the type code
Optionally: HB6 or HN(K)
→ See data sheet 1.1-311

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 47 1.11-2146 E
