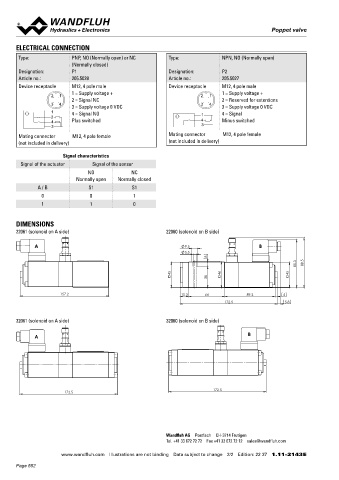

Poppet valve
Poppet valve Poppet valve

ELECTRICAL CONNECTION Solenoid operated poppet valve detented
NG6
Type: PNP, NO (Normally open) or NC Type: NPN, NO (Normally open) Flange construction ISO 4401-03
(Normally closed) ◆ 3/2-way
Designation: P1 Designation: P2 ◆ Q = 40 l/min
max
Article no.: 205.5028 Article no.: 205.5027 ◆ p = 350 bar
max
Device receptacle M12, 4 pole male Device receptacle M12, 4 pole male
1 = Supply voltage + 1 = Supply voltage +
2 1 2 1
2 = Signal NC 2 = Reserved for extentions DESCRIPTION APPLICATION
3 4 3 4
3 = Supply voltage 0 VDC 3 = Supply voltage 0 VDC Direct operated 2/2- and 3/2-way solenoid poppet valve in flange Poppet valves are used where tight closing functions of the valve
1 4 = Signal NO 4 = Signal
2 1 construction. By means of the pressure tight switching solenoid, are essential like leakage-free load holding, clamping or gripping.
4 Plus switched 4 Minus switched the poppet valve spool is opened or closed acting against the spring
3 3
and is held in the switching position by the form-closed detent.Due

Mating connector M12, 4 pole female Mating connector M12, 4 pole female to the poppet spool construction with pressure compensation on
(not included in delivery) (not included in delivery) both sides, the flow through the valve is possible in both directions.

The metallically sealing seat closes the valve virtually leak free.

Signal characteristics
Signal of the actuator Signal of the sensor
NO NC
Normally open Normally closed SYMBOL
A / B S1 S1 A_2206ra A_2206rb A_3206rr
0 0 1 A A A
1 1 0 a a b b a a b b a a b b
P T P T

DIMENSIONS
22061 (solenoid on A side) 22060 (solenoid on B side)

A 9.5 B
5.5
8 TYPE CODE
85.3 88.5 A 2 06 - - #
45 46 45 International standard interface ISO
38

Solenoid, Medium M
Solenoid, Super S
157.2 15.3 64 89.2 4
172.5 5.8 2 way (connections) 2
3 way (connections) 3
2 switching positions
32061 (solenoid on A side) 32060 (solenoid on B side)
Nominal size 6
A B
Detent one-sided A-side ra (only 2206)
one-sided B-side rb (only 2206)
on both sides rr (only 3206)

Nominal voltage U 12 VDC G12 115 VAC R115
N
24 VDC G24 230 VAC R230
Sealing material / NBR
Temperature range FKM (Viton) D1
172.5
172.5 NBR -40 °C Z604

Design index (subject to change)
1.11-2146
