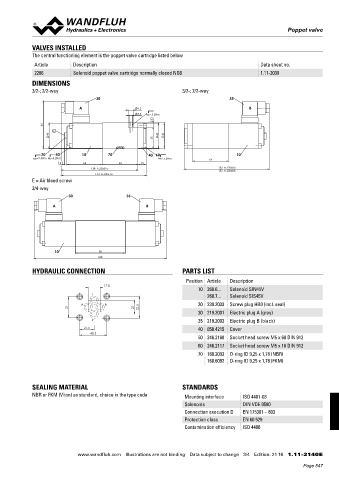

Page 547 - Softbound_Edition_19_en

Poppet valve
Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge listed below

Article Description Data sheet no.
2206 Solenoid poppet valve cartridge normally closed NG6 1.11-2030
DIMENSIONS
3/2-; 2/2-way 3/2-; 2/2-way
30 35
A 9.5 B
5.5 MD= 5.2Nm
8
85
E
45 45 46
38

20 50 10 70 40 60 10
MD= 9.5Nm MD=5.2Nm MD= 5.2Nm 64
4 64 64 15
138 A.22061a 153 A.22060b
153 A.32060b
153 A.32061a
E = Air bleed screw
3/4-way
30 35
A B

10 90
238

HYDRAULIC CONNECTION PARTS LIST
Position Article Description
17.8
10 260.6... Solenoid SIN45V
T 260.7... Solenoid SIS45V
A B 20 239.2033 Screw plug HB0 (incl. seal)
31 21 32.5
30 219.2001 Electric plug A (grey)
P 35 219.2002 Electric plug B (black)
21.5 40 058.4215 Cover
40.5
50 246.2160 Socket head screw M5 x 60 DIN 912
60 246.2117 Socket head screw M5 x 16 DIN 912
70 160.2093 O-ring ID 9,25 x 1,78 (NBR)
160.6092 O-ring ID 9,25 x 1,78 (FKM)

SEALING MATERIAL STANDARDS
NBR or FKM (Viton) as standard, choice in the type code Mounting interface ISO 4401-03
Solenoids DIN VDE 0580
Connection execution D EN 175301 – 803
Protection class EN 60 529
Contamination efficiency ISO 4406

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 16 1.11-2140 E
