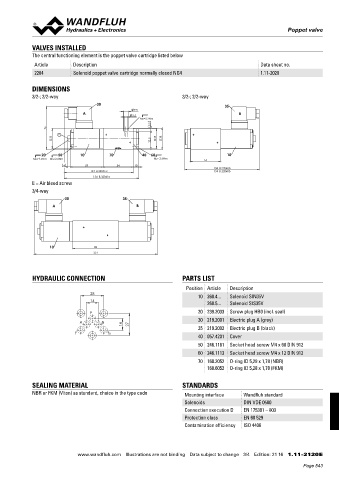

Page 543 - Softbound_Edition_19_en

Poppet valve
Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge listed below

Article Description Data sheet no.
2204 Solenoid poppet valve cartridge normally closed NG4 1.11-2020

DIMENSIONS
3/2-; 2/2-way 3/2-; 2/2-way
30 35
9.5
A B
5.5
MD=5.2Nm
5.5
76
E
35 35 38
32.5

20 50 10 70 40 60 10
MD= 9.5Nm MD=2.6Nm MD= 2.6Nm 54
4 59 54 10
134 B.22040b
124 B.22041a 134 B.32040b

134 B.32041a
E = Air bleed screw
3/4-way
30 35
A B

10 82
221

HYDRAULIC CONNECTION PARTS LIST
Position Article Description
28
10 260.4... Solenoid SIN35V
14
260.5... Solenoid SIS35V
P 20 239.2033 Screw plug HB0 (incl. seal)
30 219.2001 Electric plug A (grey)
A B
14 27
35 219.2002 Electric plug B (black)
T T0
40 057.4201 Cover
50 246.1161 Socket head screw M4 x 60 DIN 912
60 246.1113 Socket head screw M4 x 12 DIN 912
70 160.2052 O-ring ID 5,28 x 1,78 (NBR)
160.6052 O-ring ID 5,28 x 1,78 (FKM)

SEALING MATERIAL STANDARDS
NBR or FKM (Viton) as standard, choice in the type code Mounting interface Wandfluh standard

Solenoids DIN VDE 0580
Connection execution D EN 175301 – 803
Protection class EN 60 529
Contamination efficiency ISO 4406

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 16 1.11-2120 E
