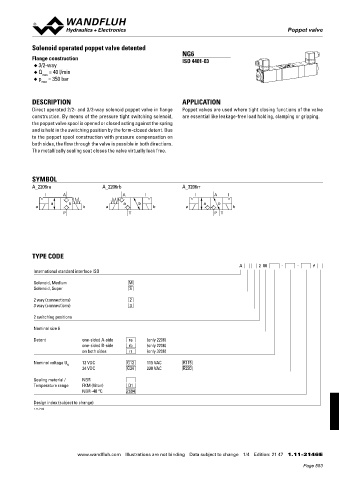

Page 553 - Softbound_Edition_19_en

Poppet valve
Poppet valve

Solenoid operated poppet valve detented
NG6
Flange construction ISO 4401-03
◆ 3/2-way
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2- and 3/2-way solenoid poppet valve in flange Poppet valves are used where tight closing functions of the valve
construction. By means of the pressure tight switching solenoid, are essential like leakage-free load holding, clamping or gripping.
the poppet valve spool is opened or closed acting against the spring
and is held in the switching position by the form-closed detent.Due

to the poppet spool construction with pressure compensation on
both sides, the flow through the valve is possible in both directions.

The metallically sealing seat closes the valve virtually leak free.

SYMBOL
A_2206ra A_2206rb A_3206rr
A A A
a b a b a b
a b a b a b
P T P T

TYPE CODE

A 2 06 - - #
International standard interface ISO
Solenoid, Medium M
Solenoid, Super S
2 way (connections) 2
3 way (connections) 3

2 switching positions
Nominal size 6

Detent one-sided A-side ra (only 2206)
one-sided B-side rb (only 2206)
on both sides rr (only 3206)

Nominal voltage U 12 VDC G12 115 VAC R115
N
24 VDC G24 230 VAC R230
Sealing material / NBR
Temperature range FKM (Viton) D1
NBR -40 °C Z604

Design index (subject to change)
1.11-2146
