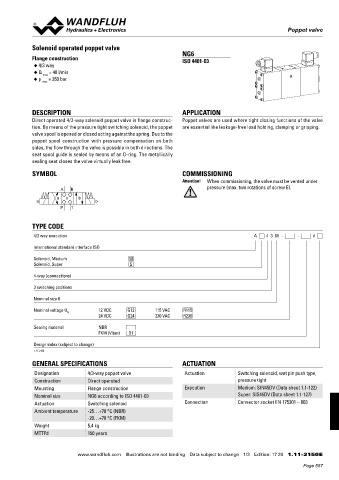

Solenoid operated poppet valve
NG6
Flange construction ISO 4401-03
◆ 4/3 way
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 4/3-way solenoid poppet valve in flange construc- Poppet valves are used where tight closing functions of the valve
tion. By means of the pressure tight switching solenoid, the poppet are essential like leakage-free load holding, clamping or gripping.
valve spool is opened or closed acting against the spring. Due to the
poppet spool construction with pressure compensation on both
sides, the flow through the valve is possible in both directions. The
seat spool guide is sealed by means of an O-ring. The metallically
sealing seat closes the valve virtually leak free.

SYMBOL COMMISSIONING
Attention! When commissioning, the valve must be vented under

A B pressure (max. two rotations of screw E).
a o b
a b
P T

TYPE CODE
4/3 way execution A 4 3 06 - - #

International standard interface ISO
Solenoid, Medium M
Solenoid, Super S

4-way (connections)
3 switching positions

Nominal size 6
Nominal voltage U 12 VDC G12 115 VAC R115
N
24 VDC G24 230 VAC R230
Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
1.11-2150

GENERAL SPECIFICATIONS ACTUATION
Designation 4/3-way poppet valve Actuation Switching solenoid, wet pin push type,
Construction Direct operated pressure tight
Mounting Flange construction Execution Medium: SIN45DV (Data sheet 1.1-122)
Nominal size NG6 according to ISO 4401-03 Super: SIS45DV (Data sheet 1.1-127)
Actuation Switching solenoid Connection Connector socket EN 175301 – 803
Ambient temperature -25…+70 °C (NBR)
-20…+70 °C (FKM)
Weight 5,4 kg
MTTFd 150 years
