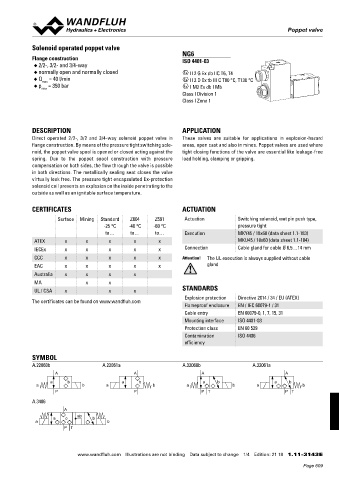

Page 609 - Softbound_Edition_19_en

Poppet valve
Poppet valve

Solenoid operated poppet valve
NG6
Flange construction ISO 4401-03
◆ 2/2-, 3/2- and 3/4-way
◆ normally open and normally closed x II 2 G Ex db IIC T6, T4
◆ Q = 40 l/min x II 2 D Ex tb III C T80 °C, T130 °C
max
◆ p = 350 bar x I M2 Ex db I Mb
max
Class I Division 1
Class I Zone 1

DESCRIPTION APPLICATION
Direct operated 2/2-, 3/2 and 3/4-way solenoid poppet valve in These valves are suitable for applications in explosion-hazard
flange construction. By means of the pressure tight switching sole- areas, open cast and also in mines. Poppet valves are used where
noid, the poppet valve spool is opened or closed acting against the tight closing functions of the valve are essential like leakage-free

spring. Due to the poppet spool construction with pressure load holding, clamping or gripping.

compensation on both sides, the flow through the valve is possible
in both directions. The metallically sealing seat closes the valve
virtually leak free. The pressure tight encapsulated Ex-protection
solenoid coil prevents an explosion on the inside penetrating to the
outside as well as an ignitable surface temperature.

CERTIFICATES ACTUATION
Surface Mining Standard Z604 Z591 Actuation Switching solenoid, wet pin push type,
-25 °C -40 °C -60 °C pressure tight
to… to… to… Execution MKY45 / 18x60 (data sheet 1.1-183)
ATEX x x x x x MKU45 / 18x60 (data sheet 1.1-184)
IECEx x x x x x Connection Cable gland for cable Ø 6,5…14 mm
CCC x x x x x Attention! The UL execution is always supplied without cable
EAC x x x x x gland
Australia x x x x
MA x x
UL / CSA x x x STANDARDS
Explosion protection Directive 2014 / 34 / EU (ATEX)
The certificates can be found on www.wandfluh.com
Flameproof enclosure EN / IEC 60079-1 / 31
Cable entry EN 60079-0, 1, 7, 15, 31
Mounting interface ISO 4401-03
Protection class EN 60 529
Contamination ISO 4406
efficiency

SYMBOL
A.22060b A.22061a A.32060b A.32061a
A A A A
a b a b a b a b
a b a b a b a b
P P P T P T

A.3406
A
ab
a o b
a b
P T

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 21 18 1.11-3143 E
