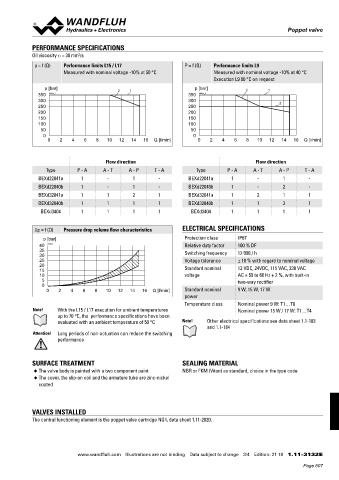

Poppet valve
Poppet valve

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limits L15 / L17 P = f (Q) Performance limits L9
Measured with nominal voltage -10% at 50 °C Measured with nominal voltage -10% at 40 °C
Execution L9 90 °C on request
p [bar] 2 1 p [bar] 2 1
350 K0945_1 350 K0945_2
300 300 3
250 250
200 200
150 150
100 100
50 50
0 0
0 2 4 6 8 10 12 14 16 Q [l/min] 0 2 4 6 8 10 12 14 16 Q [l/min]

Flow direction Flow direction
Type P - A A - T A - P T - A Type P - A A - T A - P T - A
BEXd22041a 1 - 1 - BEXd22041a 1 - 1 -
BEXd22040b 1 - 1 - BEXd22040b 1 - 2 -
BEXd32041a 1 1 2 1 BEXd32041a 1 2 1 1
BEXd32040b 1 1 1 1 BEXd32040b 1 1 3 1
BEXd3404 1 1 1 1 BEXd3404 1 1 1 1

Δp = f (Q) Pressure drop volume flow characteristics ELECTRICAL SPECIFICATIONS
p [bar] Protection class IP67
40 K0154 Relative duty factor 100 % DF
35 Switching frequency 12'000 / h
30
25 Voltage tolerance ± 10 % with regard to nominal voltage
20
15 Standard nominal 12 VDC, 24VDC, 115 VAC, 230 VAC
10 voltage AC = 50 to 60 Hz ± 2 %, with built-in
5 two-way rectifier
0
0 2 4 6 8 10 12 14 16 Q [l/min] Standard nominal 9 W, 15 W, 17 W
power

Temperature class Nominal power 9 W: T1…T6
Note! With the L15 / L17 execution for ambient temperatures Nominal power 15 W / 17 W: T1…T4
up to 70 °C, the performance specifications have been
evaluated with an ambient temperature of 50 °C Note! Other electrical specifications see data sheet 1.1-183
and 1.1-184
Attention! Long periods of non-actuation can reduce the switching
performance

SURFACE TREATMENT SEALING MATERIAL
◆ The valve body is painted with a two component paint NBR or FKM (Viton) as standard, choice in the type code
◆ The cover, the slip-on coil and the armature tube are zinc-nickel
coated

VALVES INSTALLED
The central functioning element is the poppet valve cartridge NG4, data sheet 1.11-2020.

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 18 1.11-3132 E
